Introduction

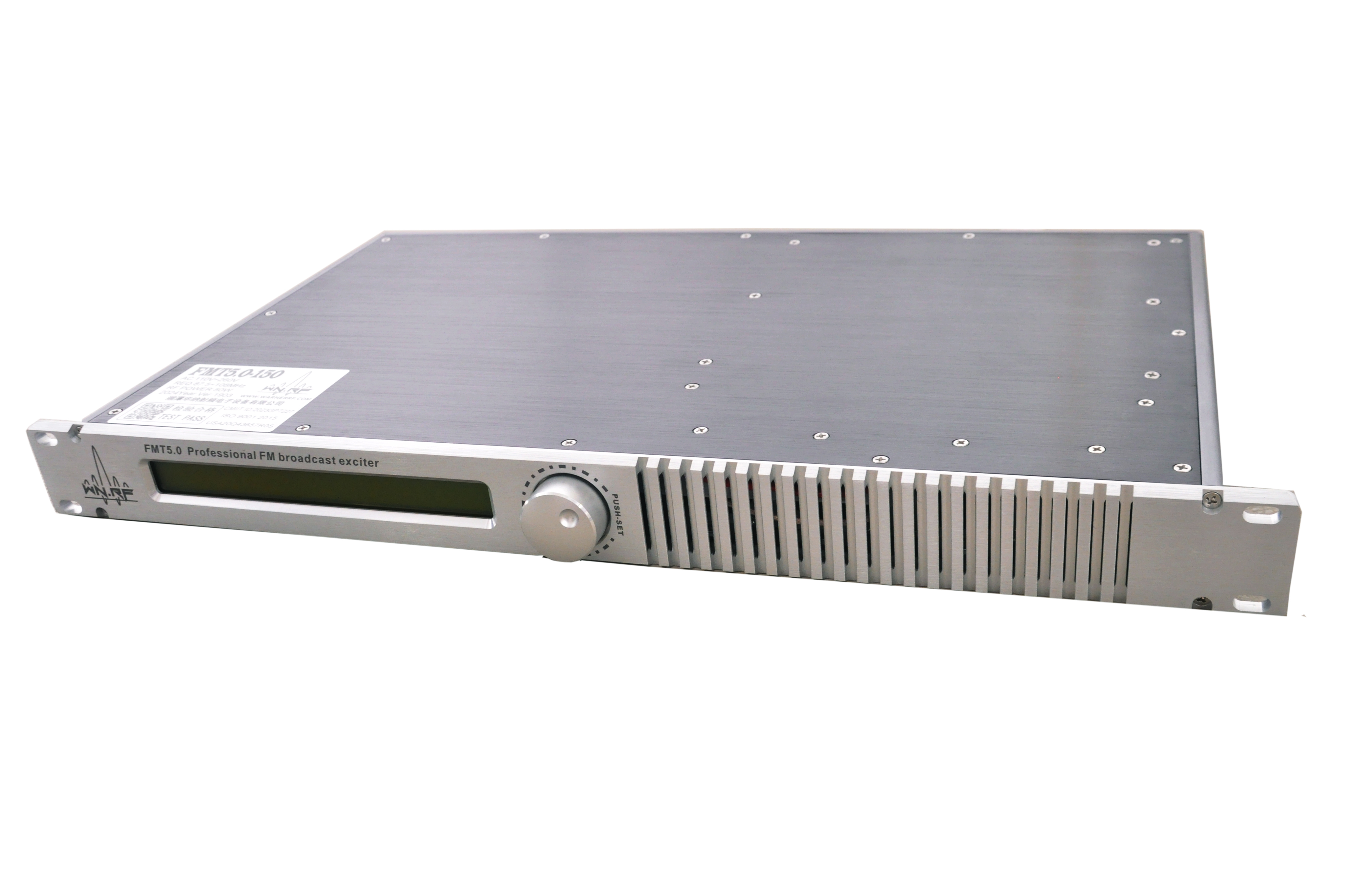

FMT5.0-150H FM radio transmitter is highly reliable, lighter in
weight and easier to operate than previous version of transmitter.
This transmitter adopts a simple-style design concept. It
integrates the 150W FM stereo transmitter exciter, power amplifier,
output filter and switching power supply in a 1U high 19-inch
standard case, reducing the connecting cables between the
components.
Technical Features:
• User-friendly digital LCD panel, using one rotary knob to
control.
• The integrated LCD screen displays all the parametric including:
transmitter frequency, stereo and mono, volume, amplifier tube
temperature, audio signal UV meter, forward power, reflected power,
modulation mode, pre-emphasis etc,.
• 1U 19-inch thickened all-aluminium case, strong and excellent
heat dissipation.
• Precise PLL frequency generation system, to ensure that the
frequency not drift away for more than10 years, with built-in
high-quality stereo encoder.
• Outstanding power AGC balance control system, adjustable power
output from 0 to 150 watts, and automatic gain power control to
maintain output power within set range without drifting.
• Signal input supports XLR and RCA audio inputs, and also SCA and
RDS signals using the BNC connector AUX.
• The RF amplifier uses LDMOS transistors to withstand even severe
load mismatch exceeding the 65: 1 VSWR at a 5dB compression point.
Technical Parameters: Frequency: 87.5-108MHz Frequency step value:
10KHz
Modulation method: FM, peak deviation ± 75KHz Frequency stability:
<± 100Hz
Frequency stabilization method: PLL frequency synthesizer RF output
power: 0 ~ 150 W, step 0.1W, error ± 0.5dB Harmonic suppression:
≤-72dB
Inband residual wave: ≤-72dB
Asynchronous AM SNR: ≥-80dB (no modulation) ≥-65dB (400Hz, 100%
modulation)
Synchronous AM SNR: ≥-70dB (no modulation) ≥-60dB (400Hz, 100%
modulation) RF output impedance: 50Ω

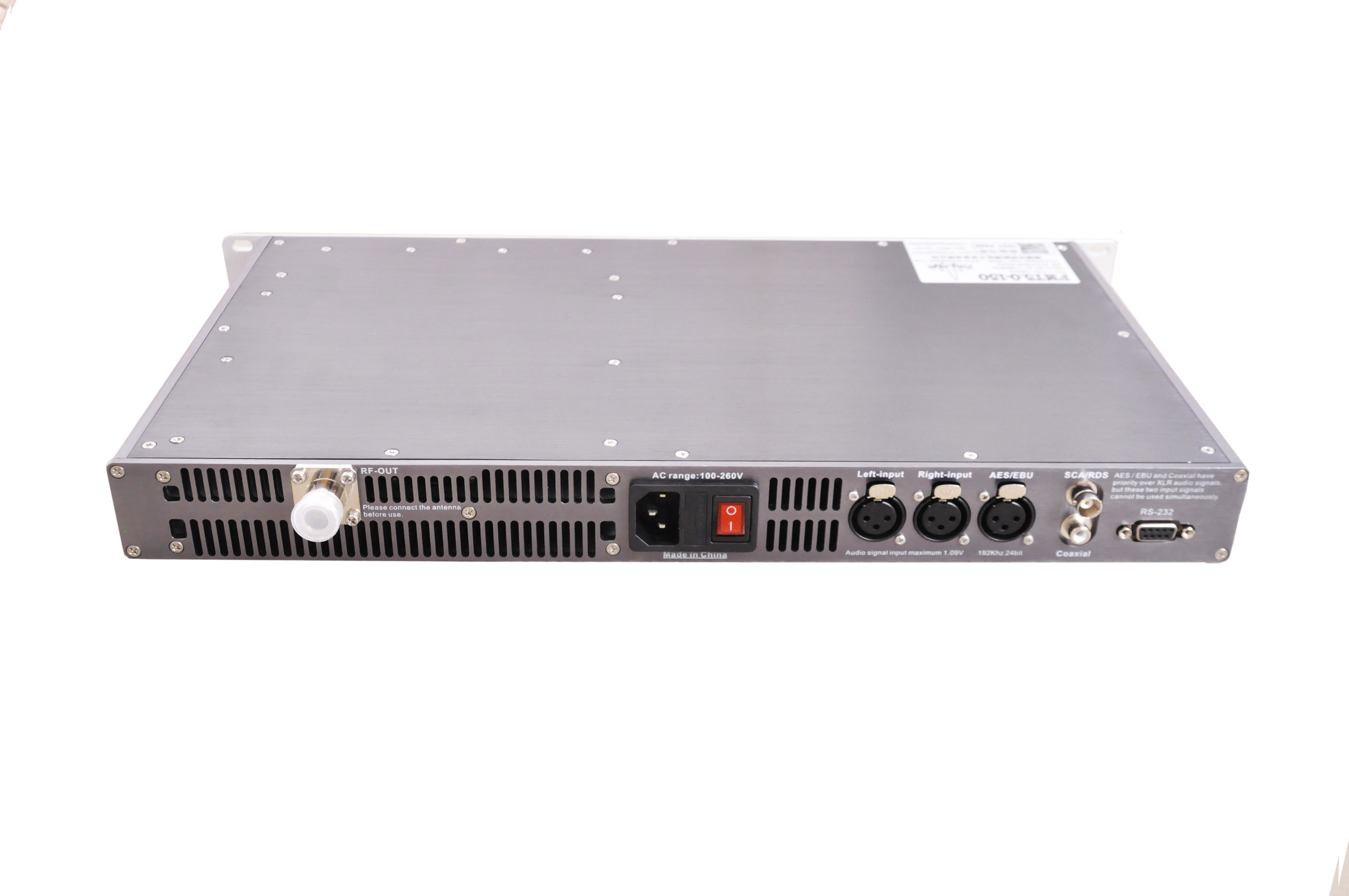

RF Output Connector: N Female (L16)
Audio Input Connectors: XLR Female and RCA Female AUX input
connector: BNC female
Pre-emphasis: 0us, 50us, 75us (user setting) Mono signal to noise
ratio: ≥ 80 dB (20 to 20KHz)
Stereo signal-to-noise ratio: ≥ 80 dB (30 to 15KHz) Stereo
resolution: ≥ -55dB
Audio frequency response: 30 ~ 15000Hz ± 0.4dB Audio distortion:
<0.1%
Audio level gain: -15dB ~ 15dB step 0.5dB Audio input: -15dB ~ 0dB
Power supply voltage range: 110V ~ 260V (global voltage) Power
consumption: <320VA
Operating temperature range: -10 to 45 ℃
Way of working: continuous work Cooling method: forced air cooling
Cooling method: <95%
Altitude: <4500M
Dimensions: 484 x 260 x 44 mm without handles and protrusions, 19
"1U standard rack.
Weight: 5Kg
