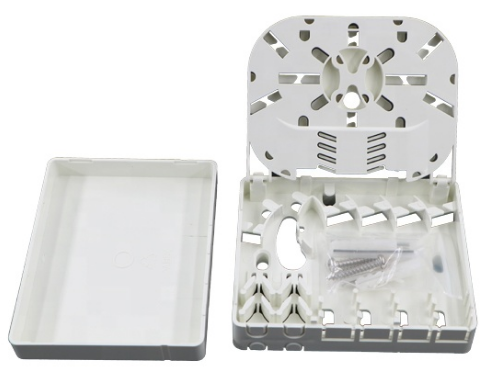

New small size white color ABS material Fiber optic terminal box
4fibers with SC adapters for FTTH use
New product Indoor FTTH ABS Fiber optic terminal box 4fibers with
SC adapters
Description:
The fiber optic cable terminal box is suitable for direct and
branch connection of indoor fiber optic cable, and plays the role
of protecting fiber optic connector.
It is suitable for building and villas residence to enter the cable
end, fixed and tail fiber welding.
1. The terminal box is made of the latest technology and is in line
with the ISO9000-2000 standard.
2 . The life span of 2. boxes is more than 20 years.
3. Optical cable terminal box structure is compact, light weight,
mechanical design structure in any operation, replacement, storage
and transportation are reliable;
4. This product has the function of introducing indoor optical
cable or leather cable, leading out tail fiber and jumper wire, and
has the function of protecting optical fiber.
5., has the function of preventing the optical cable terminal from
being affected by the environment.
6. provide the function of optical cable terminal placement and
remaining optical fiber storage.
7., it has the function of wiring.
Product characteristics:
A, small size, light weight, beautiful appearance;
B, can be installed on the wall, with mechanical protection
function;
C, can realize many kinds of optical fiber connection mode.
D can effectively manage optical fiber.
E. Increasing the turnable core, enlarging the space of the disc
fiber, making the zones of the fusion zone and the wiring zone more
obvious and reducing the line crossing.
F, adapter type: SC (no ear adapter)
Specification:
| Product model: | HLIN-OTB04B-S |
| Szie(mm)Long×Width×Height | 100*80*29 | Suitable | 3.0*2.0mm drop cable or indoor cable |
| Material: | High quality ABS/PC | Net weight(Kg) | 0.4 |
| Maximum fusion core number: | 4(core) | Fiber diameter | 250um&900um |
List of package:
| Terminal box body | 1set | Instruction | 1 copy |
| Heat shrinkable tube L=40 | 4pcs | 3x100 tie | 2pcs |
| M4×25 plastic expansion screws | 2sets | | |
Installation procedure:
1:Open the lid and use the plastic expansion screw in the
attachment to fix it in the desired position.
2, load the adapter (ear less adapter).
3. Stripping the cable, removing the outer sheath, the inner
sheath, the loosening tube, cleaning and removing the oil filling
paste in the cable, leaving the fiber length of 1.1-1.6 m, fixing
the cable with a tie, leading the fiber into the core of the disc
for reserved winding, and leading the end to the weld groove.
4, access to pigtail, the same will be introduced into the core of
the tail fiber winding, the end to the weld.
5 Clsoe the lid and complete the installation.
