CPRI LC to LC FTTA outdoor fiber optic patch cord duplex 7mm
diameter for outdoor use
CPRI fiber patch cable for the new generation wireless base
stations(WCDMA/TD-SCDMA/WiMax/GSM). Such productscan be meet the
FTTA(fiber to the top of the tower) program requirements for
outdoor environment conditionsand adverse weather conditions.
Especially in the 3G, 4G, and WiMax base stations and fiber-optic
distributed zoom technology, CPRI fiber patch cable are rapidly
becomingthe standard connectorinterface.
Features:
The material in the jumer cable are all-weather and UV-resistant
IP67 water and dust protection
• Good mechanical and environmental characteristics;
• Flame retardant characteristics meet the requirements of relevant
standards;
• The mechanical characteristics of jacket meet the requirements of
relevant standards;
• Soft, flexible, water blocked, UV resistant, easy to lay and
splice, and with big capacity data transmission;
Application:
Multi-purpose Outdoor,
For connection between distribution box and RRH,
Deployment in remote radio head cell tower applications.

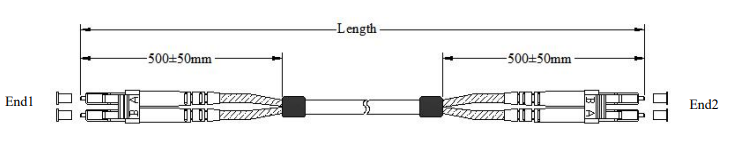

PDLC Outdoor Cable Assemblies
Cable Structure:
Cable Parameter:
Fiber Count |
CableDimension
mm |
CableWeight
kg/km |
Tensile (N) | Crush(N/100mm) | Min. Bend Radius
(mm) |
Range of Temperature |
| LongTerm | Short Term | LongTerm | ShortTerm | Dynamic | Static |
| 2 | 7.0 | 42 | 200 | 400 | 300 | 1000 | 20D | 10D | -20-+70 |
| 2 | 5.0 | 24 | 150 | 300 | 300 | 1000 | 20D | 10D | -20-+70 |
Note:
1. All the values in the table, which are for reference only, are
subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of
2.0 outer diameter;
3. D is outer diameter of the round cable; |
Optical fiber characteristic:
Item | Unit | Specification |
Attenuation | dB/km | 1310nm≤0.4 1550nm≤0.3 |
Dispersion | Ps/nm.km | 1285~1330nm≤3.5 1550nm≤18.0 |
Zero dispersion wavelength | Nm | 1300~1324 |
Zero dispersion slope | Ps/nm.km | ≤0.095 |
Fiber cutoff wavelength | Nm | ≤1260 |
Mode field diameter | Um | 9.2±0.5 |
Mode field concentricity | Um | <=0.8 |
Cladding diameter | um | 125±1.0 |
Cladding non-circularity | % | ≤1.0 |
Coating/cladding concentricity error | Um | ≤12.5 |
Coating diameter | um | 245±10 |
bending, dependence induced attenuation | 1550nm, 1turns,32mm diameter 100rums,60mm diameter | ≤0.5 db |
Proof test | kpsi | ≥100 |
