Indoor OM3 type Multicore Fiber optical Cable with customerized
jacket color(GJFJV)
Optical Characteristics:
| G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Mechanical Characteristics
| | |
| |
Crush Resistance(N/100mm) | | |
| |
| | |
| |
Product Description

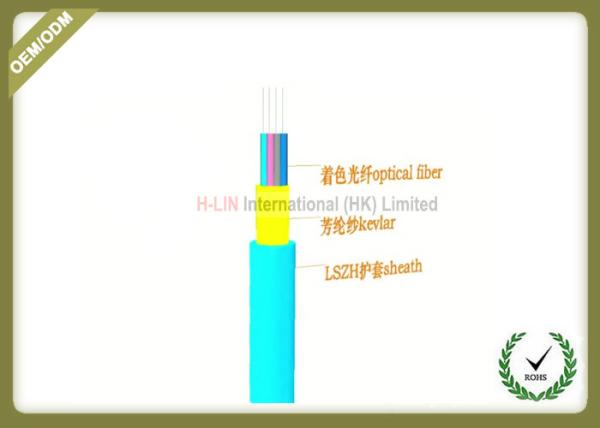

GJFJV cable is made by the tight buffer fiber wrapped with a layer
of aramid yarn as strength member units,multi fibers as the sub
unit twist with FRP into the circle ,and finally into fiber optic
cable with PVCor LSZH sheath, with dry-type water-blocking
materials between fiber and sheath.
1 fiber, Φ900μm or Φ600μm tight buffer , spiral steel armor, layer
of Kevlar yarn, LSZH/ PVC/ OFNR Jacket.
Applications
· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment
rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.
1.Hight strength Kevlar yarn member.
2.More tight buffered design.
3.Round construction.
4.Saft. Easy to strip.
Product Introduction:
The jacket anti-corrosion,waterproof ,Ultraviolet ressistant,flame
retardant environmental protection etc.
All diellectric structure,no electromagnetic interference,strict
process scientific and reasonable design,
Aramid strengthening origianl ,enabling the cable tensile
performance excellent,
Diameter and small bending radius,freely install in narrow space,to
meet the different needs of indoor
