GYFTS
Non-metal Central Strength Member and Steel Tape Optical Cable
Description:
24 fo outdoor armour optical fiber g652d /g657 cable GYFTS
GYFTS is used for duct or aerial applications. These steel tape
armored cables are suitable for installation for long haul
communication and LANs, especially suitable for the situation of
high requirements of moisture resistance. It is the stranded loose
tube fiber optic cable with compact structure; the cable jacket is
made of strong Polyethylene; High strength loose tube that is
hydrolysis resistant. H-LIN provides GYFTS from 4 fiber cores to
288 fiber cores. Both single mode type and multimode types are
available. We also provide Customized Service such as fiber number,
fiber color and cable length, etc.

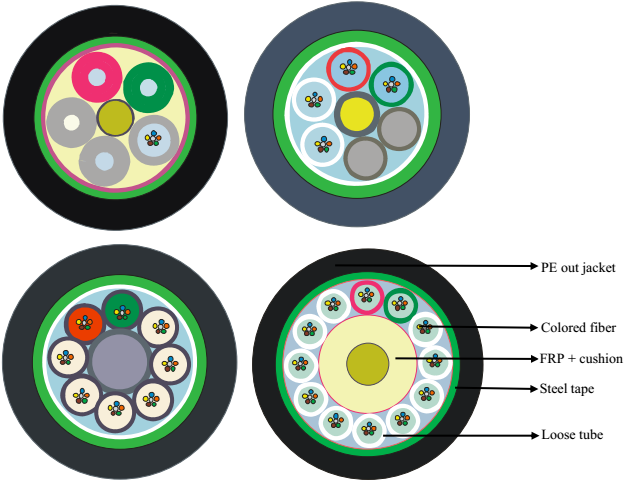

Loose tube cable with non-metal strength member,and polyethylene
coated steel armour.
All the interstices of cable core are filled with water blocking
compound.
Characteristics.
A: Accurate fiber excess length ensures good performance under
mechanical stress and good temperature performance.
B: The Central strength member is made of high modulus glass fiber
reinforced plastic rod(FRP)
C:The non-metal central strength member and steel tape caused by
lightning induction.
D:The loose tubes are filled with special filling compound for
crucial protection of the optical fibers.
E:Complete water blocking construction ensures good water blocking
and moisture-proof performance.
F:The longitudinal binding steel tape functions as protection as well
as reinforcing the crush resistance and mechanical performance.
Packing:
Label will be sticked at wooden drum,include style of optical cable
and fiber account,length,Gross weight KGS,Total drums
amount,manufacture date
Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
4 | 1+6 | 4 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 97 |
6 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 97 |
8 | 1+6 | 4 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 98 |
12 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 98 |
18 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 98 |
24 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 99 |
30 | 1+6 | 6 | 1.8±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 100 |
36 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 101 |
48 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 1.6±0.1 | 10.7±0.5 | 112 |
60 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 1.6±0.1 | 10.7±0.5 | 113 |
72 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 1.6±0.1 | 10.7±0.5 | 114 |
84 | 1+7 | 12 | 2.0±0.1 | 3.0 /3.0 | 1.6±0.1 | 11.4±0.5 | 130 |
96 | 1+8 | 12 | 2.0±0.1 | 2.6/3.5 | 1.6±0.1 | 12.0±0.5 | 140 |
108 | 1+9 | 12 | 2.0±0.1 | 2.6 /4.2 | 1.6±0.1 | 12.7±0.5 | 155 |
120 | 1+10 | 12 | 2.0±0.1 | 2.6/ 4.9 | 1.6±0.1 | 13.4±0.5 | 171 |
132 | 1+11 | 12 | 2.0±0.1 | 3.0 /5.5 | 1.6±0.1 | 14.0±0.5 | 187 |
144 | 1+12 | 12 | 2.0±0.1 | 3.0 /6.3 | 1.6±0.1 | 14.8±0.5 | 207 |
Item | | Parameters |
Loose tube | Material | PBT |
| Color | All colors display |
Filler | Material | PE |
| Color | Black |
CSM | Material | FRP |
Armoured | Material | Plastic coated steel strip |
Outer jacket | Material | MDPE |
| Color | Black |
Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter |
Repeating bending | Load:150N;number of cycles:30 No obvious addition attenuation, no
fiber break and no cable damage. |
Tensile performance | Short term | 1500N |
Crush | Short term | 1000N/100mm |
Torsion | Load:150N; number of cycles:10; twist angle:±90° No obvious
addition attenuation, no fiber break and no cable damage. |
Impact | Impact energy:450g×1m; radius of hammer head:12.5mm; number of
impact: 5 No obvious addition attenuation, no fiber break and no
cable damage. |
| Short term | 1000N/100mm |
