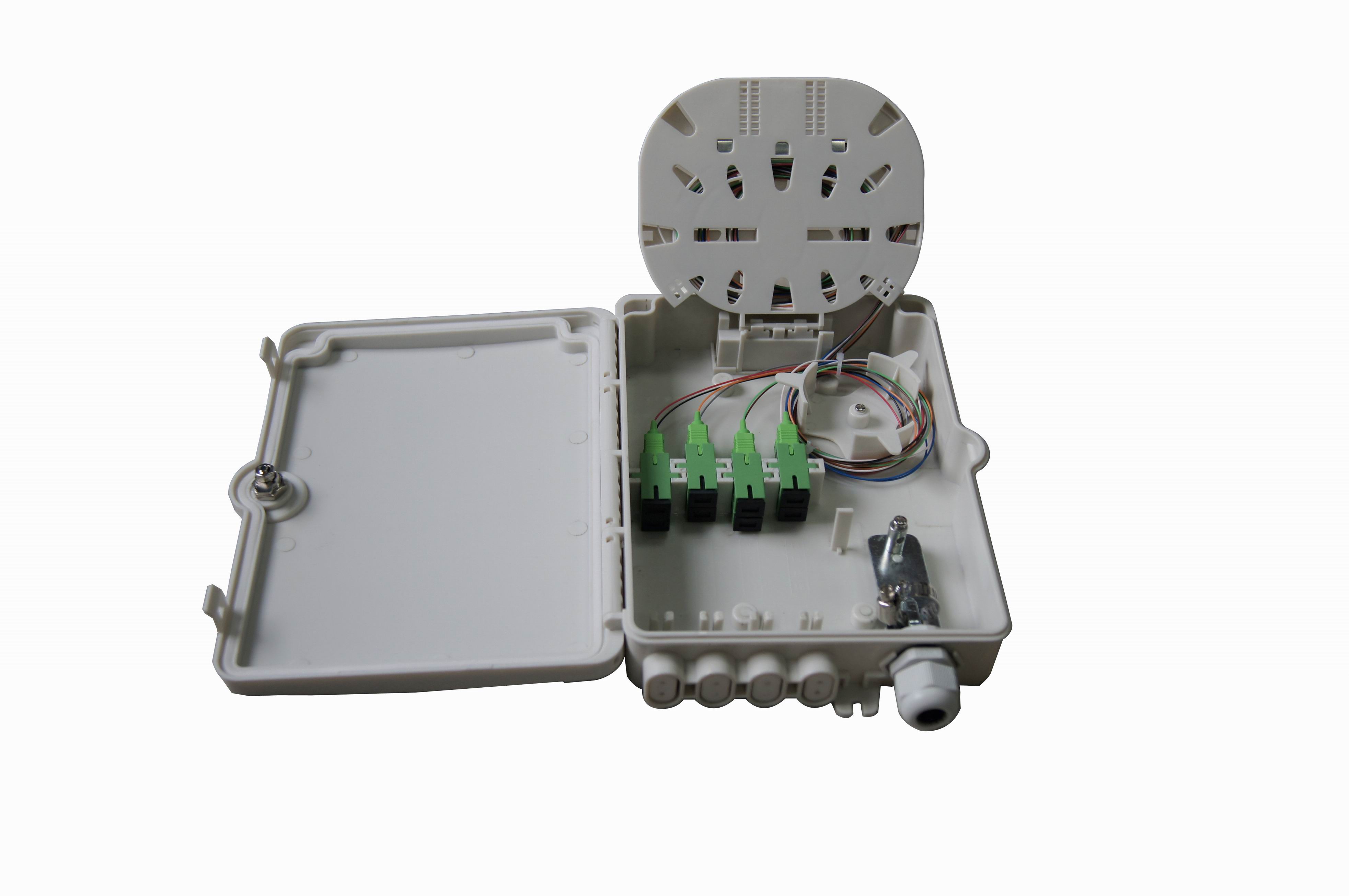

Fiber Terminal Box 8 Cores , Fiber Optic Ftth Distribution Terminal
Box with cable gland 6~11mm
Features:
Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x4,1x8, 2x4,2x8 PLC splitter.
Indoor or outdoor using, waterproof.
Wall mounting and pole mounting application.
1 oval inlet port, 8 outlet ports.
Product Features:
· Excellent design, graceful appearance and convenience operation.
· White color, graceful style and good adaptability to environment.
· Made of high quality ABS+PC, anti-collision, flame retardant,
resistance to impact. All the materials complied with ROHS
standard.
· Fiber cable inlets in every direction, supports the cable inlets
for different scenarios.
· Plug fiber without having to open the shell, easily accessible
fiber operation, With rotated transparent cover, port vertically
downward to avoid causing personal injury.
· Remarkable laser warning identification
Description:
Fiber optic terminal box is a FTTH mini optic terminal box,It is
used in the end termination of residential buildings andvillas, to
fix and splice with Pigtails or connected fast connectors can be
installed on the outside wall.
Optical fiber terminal box is a cable terminal,one side is cable,
the other side is pigtail, it equals to split cable into a single
fiber cable equipment, installed on the wall at the user cable
terminal box.Its function is to provide the welding between optical
fibers, between fibers and pigtails, and the transfer of optical
connectors. And provide mechanical protection and environmental
protection for optical fiber and its components, and allow
appropriate inspection to maintain the highest standard optical
fiber management
1. provide a protective connection for cable and wiring pigtail.
2. make the metal component of optical cable insulated from the end
shell of optical cable, and can easily lead out the grounding
3. provide the location of optical cable terminal and the space of
optical fiber storage at the remaining end, so as to facilitate the
installation operation.
4. the box body with enough impact strength is fixed, which is
convenient for installation in different occasions.
5. may choose the hanging wall installation or directly placed in
the groove and other installation methods.
