Outdoor water blocking oxygen free copper shielded Cat5e cable 305M
0.5mm diameter
Name: Cat5e,cat6e of shielded outdoor unshielded outdoor oil filled
Twisted Pair Outdoor waterline.
Characteristics: tensile, waterproof, sunscreen and mouse proof
environmental protection materials.
Specification: 0.5/0.57 oxygen free copper
Material: 99.99% high purity oxygen free copper, sheathed
polyethylene and PVC.
Shielding layer: aluminum foil shielding +0.50MM single oxygen
copper earth wire +96 net oxygen free copper woven net
Sheath material: PVC+PE double layer sheath.
Product packaging: 305 M / axle, foot 305 meters.
Product warranty: 25 years quality assurance
Scope of application: large scale network construction of
government agencies, luxury hotels, intelligent buildings, etc. Up
to standard Gigabit transmission standard.
* Shielded/Unshielded twisted pairs
* 26 or 24 awg solid or stranded bare copper,
* Insulation/Jacket thickness: 0.2/0.6mm
* Temperature range: -20°C~+75°C
* Rid Cord, Drain Wire optional
Reference Standard:
* TIA/EIA-568, CSAC22.2, ISO/IEC 11801, YD/T1019-2001
Product instructure:
Conductor: solid oxygen free copper, Φ0.51 + 0.01mm.
Insulation: new HDPE, Φ 0.91 + 0.05mm.
Double outer sheath: new PVC or LSZH+PE
Line logarithm: 8 core 4 pairs twisted pair.
It is used of 1rip cord and 4pairs twisted
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Specification:
| jacket | Material | PVC |
| Thickness | 0.615mm±0.1mm |
| O. D . | 6.1mm±0.3mm |
| Color | According to customer’s requirement |
| Elongation | Min.125% |
| tensile | Min.1.41kg/m |
| weight | 9.6kgs/305m |
|
|
| package | packing | 1000FT/305M per box or as customer’s requirement |
|
|
|
| 100 Base-TX, 100 Base-T4, 100VG-AnyLAN, 1000Base-T, ATM |
| Application |
| datapass | 160m |
| CATEGORY 5e FTP CABLE 24AWG 4PAIR 1m ............... As customer
order |
| Cable printing |
| MOQ | 100BOXES |
| OEM | Provide Free box/logo design |
| Price Term | FOB, CIF, C&F or other (port is shenzhen) |
| Payment Term | T/T |
| Terms& | Delivery time | 3-5days |
| condition | certificate | CE&ROHS&ISO9001 |
| Temperature Rating | 75c |
| Conductor | 24AWG: 9.38/100M Max.(at 20) |
| Resistance |
| Unbalance | 5 Percent Max |
| Resistance |
| Capacitance | 5600pf/100 meters |
| 330pf/100 meters |
All our our jacket use the brand new material,never use second used
material.

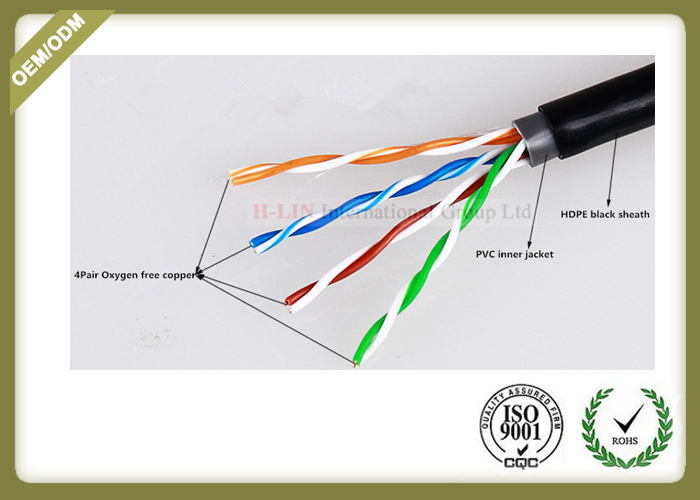

Brand new PVC inner sheath, anti blocking, tensile, anti freezing,
Brand new HDPE outer sheath, anti-aging, corrosion resistant,
tensile.
Standard oxygen free copper core material, copper purity reach than
99.9%, stable transmission! 100 nm ensures stable Internet access,
stable data transmission, small transmission attenuation, low
signal loss and high transmission rate.
Each sheath is full of toughness and bright colors, which
guarantees genuine products.
