FTP Category 5e Ethernet Cable For Cabling System With Purple color jacket

PRODUCT DESCRIPTION

Rated Temperature:60℃,75℃

Reference Standard:TIA/EIA-568B

Bare Solid or Stranded Copper Conductor

PVC or LSZH jacket

Flammability grade :CMX/CM/CM Optional

UTP/FTP/STP/SFTP Optional

APPLICATIONS & FEATURE

100 Base-T4

100 Base-TX

1000 Base-T (Gigabit Ethernet)

155 Mbps ATM

622 Mbps ATM

Description:

Generic cabling products are used for modular and flexible transmission of information between buildings or groups of buildings. It can realize the connection of voice, data, exchange and all kinds of control equipments and communication network system. It includes network, telephone, monitoring, power supply and lighting system, etc.

On the market there are a lot of the cable, module inferior copper or alloy production, plastic parts made by the mould is not accurate and waste plastics into such products, which lead to the construction side can not pass test after laying.

Cat5e STP(shielded Twisted Pair) Cable is composed by multi pair twisted wire,a cladding of aluminum foil, and a plastic jacket,it is an improvement on the current Cat5,like charactisc parameter,Near end interference,Attenuation reference and Return loss.

It is used of 1rip cord and 4pairs twisted

Pair1: Orange/White Orange

Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown

for pure copper conductor,it is 0.51mm(24AWG),It is generally applicated in 100Mb/s Fast ethernet,to achieve the connection for desk switch with computer.

Model	FTP Category 5e Ethernet Cable For Cabling System
Conductor Size	24AWG,25AWG,26AWG
	4*2*1/0.51mm (0.50mm, 0.48mm, 0.45mm, 0.4mm, 0.38mm)
Conductor Material	BC/CCU/CCA/OFC/CCS
Nuber Of Conductor	2P, 4P
Shiled	UTP/FTP/STP/SFTP /SSTP
Flammability Grade:	CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / Outdoor	Single jacket / Double jacket
Insulation Material	PE , HDPE
Insulation Thickness	0.55mm
Number of pairs: 4 pairs	Pair1: Orange/White Orange Pair2: Blue/ White Blue Pair3: Green/ White Green Pair4: Brown/White Brown
Jacket Material	PVC, ROHS PVC, LSZH PVC
Jacket Thickness	0.92-0.95mm
DC Resistance(Max.)	9.5Ω/100m
DC Resistance Imbalance	2.50%
Working Capacitance(Max.)	5.4nF/100m
Insulation Resistance	10000MΩ.km
Transmission Velocity	65%
Operating Temperation	-20 °C - +75 °C
PVC Jacket Color	As client’s request.
Print Words On Cable	CAT5E 4P 24AWG VERIFIED TO EIA/TIA 568B.ISO/IEC 11801 EN501 or clients' request.

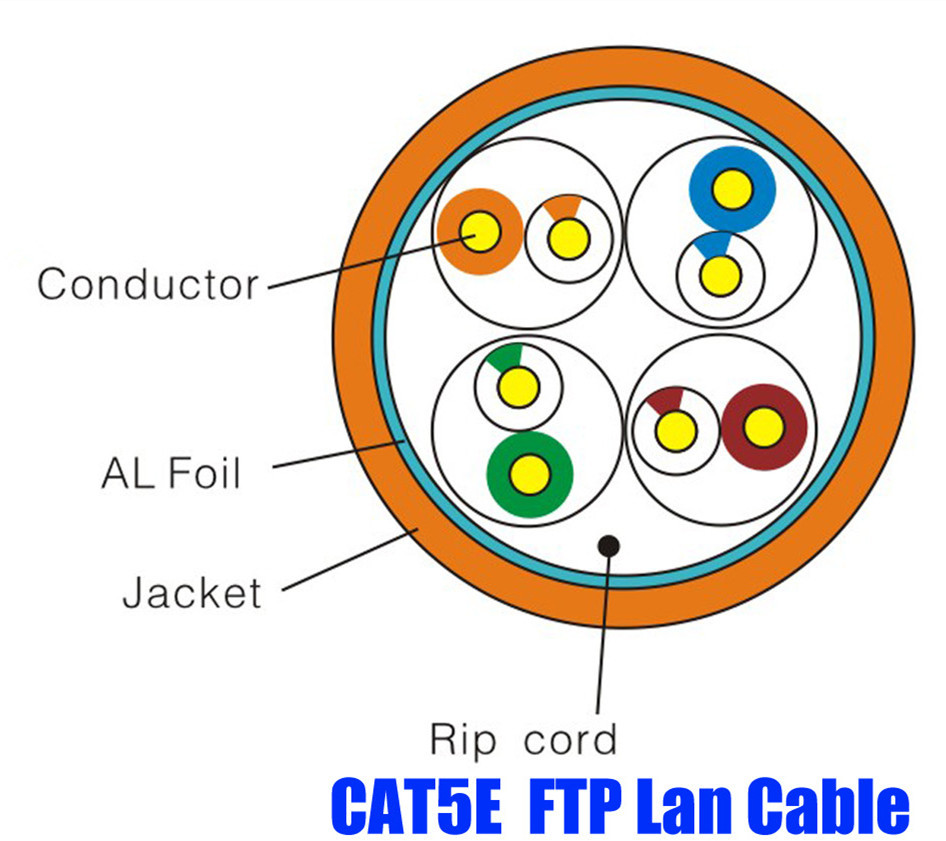

Construcation Draw

Packing:
