    Light Weight FTTH Aerial Drop Cable Novel Flute With Non - Metal Strength Member

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : GJYFCH2
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Kilometer/Kilometers per Day
    Delivery Time : 3-5Days
    • Product Details
    • Company Profile

    Light Weight FTTH Aerial Drop Cable Novel Flute With Non - Metal Strength Member


    Outdoor FTTH Singlemode aerial drop cable with FRP Strength Member(2core FTTH)


    Product Description

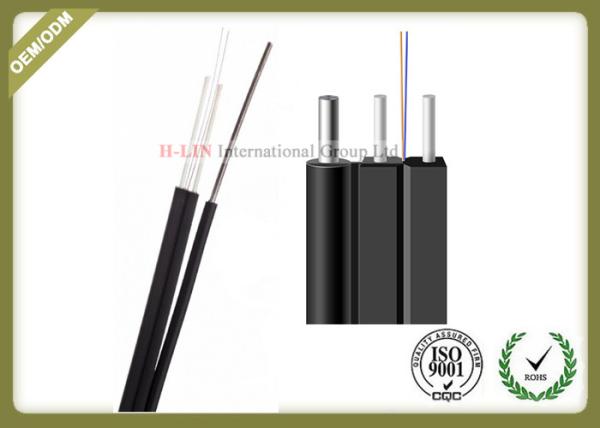

    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.

    A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

    • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
    • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
    • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
    • Simple structure, light weight and high practicability;
    • Novel flute design, easily strip and splice, simplify the installation and maintenance;
    • Low smoke, zero halogen and flame retardant sheath.

    Technical Parameters:

    Cable CountMinimum allowable Tensile Strength(N)Minimum allowable crush Load(N/100mm)Minimum Bending Radius(mm)Storage temperature(℃)
    short termlong termshort termlong termshort termlong term
    2600200100030020D10D40-70

    Optical Characteristics
    Fiber SortMultimodeG.651A1a:50/125Graded-index fiber
    A1b:62.5/125
    SinglemodeG.652(A,B,C)B1.1:Conventional fiber
    G.652DB2:Zero dispersion shifted
    G.655B1.2:Cut-off wavelength shifted
    G.657(A1,A2,B3)B4:Main technical data for positive dipersion shifted single-mode fiber

    Application


    • Used in access network or as access cable from outdoor to indoor in customer premises .
    • Used as access building cable in premises distribution system.
    • Especially used in indoor or outdoor aerial access cabling.

    Product Feature


    Top quality fiber, flexible, fast transmission, stable



    New LSZH Material,Smooth, Environmental, Fire-Retardant



    Phosphated Steel Wires, Anti-corrosion, Anti-rust, Long life
