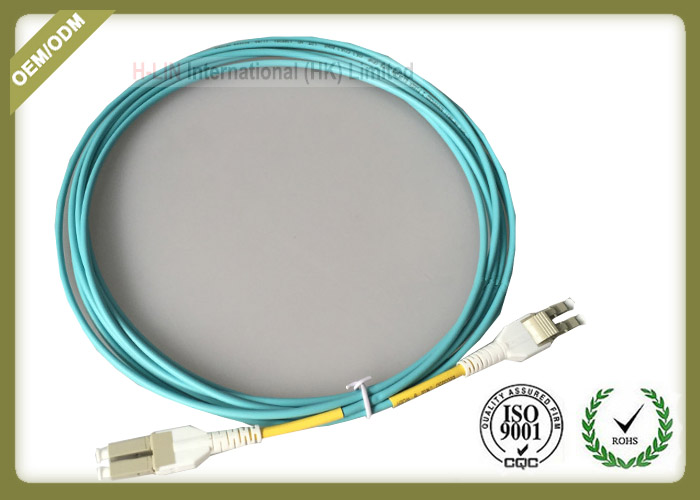

LC-LC-UPC multimode 10G OM3 Duplex Uniboot type Patchcord One tube
2cores
Product Description:
Optical fiber hopping can be divided into single-mode and
multi-mode hopping of common silicon-based optical fiber according
to the transmission medium. According to the structure of
connector, it can be divided into FC hopping, SC hopping, ST
hopping, LC hopping, MTRJ hopping, MPO hopping, MU hopping, SMA
hopping, E2000 hopping, DIN hopping and so on. The more common
optical fiber jumpers can also be divided into FC-FC, FC-SC, FC-LC,
FC-ST, SC-SC, SC-ST and so on. The number, length and physical
structure of jumper core can also be defined by the customer. The
company uses high-precision grinding machine, first-class test
control means, rigorous inspection mechanism, all optical fiber
sleeves are made of high-quality ceramics, so that any
configuration of fiber tail line and jumper can make optical signal
loss very small, to ensure that there is very low insertion loss
and reflection loss.

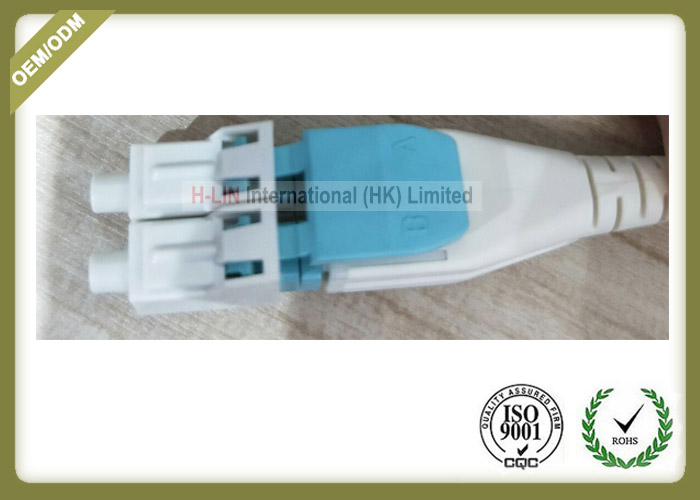

LCuniboot dual-core fiber jumper is suitable for dense high-density
fiber optic wiring rack, highly flexible 2-core single fiber cable
reduces the congestion of fiber optic cable, and in high-density
wiring rack can be fast and convenient plug-and-pull connectors,
further improving the convenience of jumper management and laying.
Specifiaction:
| Product Name | Popular for the market patch leads zipcord LC uniboot OM3 patchcord |
| Modle Number | LC OM3 Uniboot |
| Diameter | 0.9/2.0/3.0 |
| Connector | SC/LC/FC/ST |
| Cable length | 1.2.3...Customized |
| Polishing | yes,plished |
| Material | LSZH/PVC |
| Form of sale | OEM/ODM |
| Use | Connect the optical transmitter, receiver, and the terminal box. |
| Custom Design | Welcome |
| Sample Lead Time | 1-3days |
| Certificate | CE,ROHS |
| Advantage | Low IL,High RL |
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC/UPC | APC | PC | PC/UPC | PC | PC/UPC | PC | PC | APC |
Insertion loss(typical) | dB | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 |
| Return loss | dB | ≥ 50 | ≥ 60 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 50 | ≥ 30 | ≥ 55 | ≥ 75 |
| Operating wavelength | nm | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 | 1300(OM1)850 | 1310, 1550 |
| Exchangeability | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Vibration | dB | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 | ≤ 0.2 |
| Operating temperature | | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable diameter | mm | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0, φ 0.9 | φ 3.0, φ 2.0
|
Feature:
• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to
customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best
life time.
Application:
Optical fiber communication system, optical fiber access network,
optical fiber data transmission, optical fiber CATV, local area
network (LAN), test equipment
