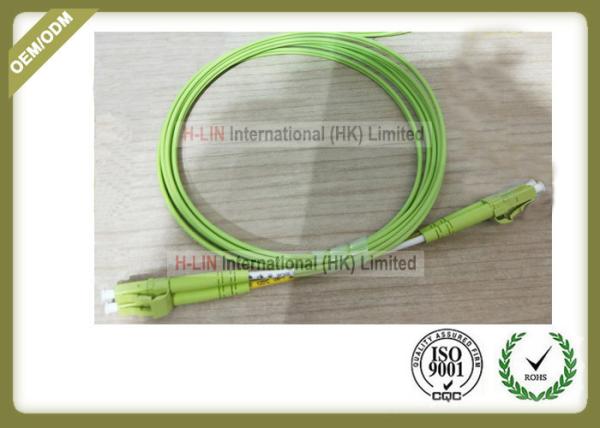

Excellent LC TO LC Duplex MM OM5 Fiber optic patch cord Light green
color LSZH
Product Description:
OM5 fiber hopping, broadband multimode fiber hopping (WBMMF),
defined by TIA and IEC, is a new standard for fiber hopping with a
diameter of 50/125 micron. Compared with OM3 and OM4 fiber hopping,
OM5 fiber hopping can be used for higher bandwidth applications.
Chaozhou Third Ring Ceramic Core Inserter, the largest manufacturer
of ceramic cores in China, is adopted to ensure the quality of
ceramic cores. After production and processing, the test data is
less than 0.2dB, which fully meets the domestic and foreign
telecommunication standards.
2. Adopting Corning, Changfei, Beacon, Fujikura, Mitsubishi 9/125
high-quality single-mode core, long transmission distance, low data
stability attenuation and wider transmission bandwidth.
3. PVC/LSZH low smoke halogen-free two kinds of materials are used
for fiber optic cable sheath, environmental protection, flame
retardant, high and low temperature performance is good, in line
with ROSH environmental protection certification, EU exports, core
high-end cabling room use more reliable.
4. The length of jumper can be customized arbitrarily. The General
specifications are: 1 meter, 2 meters, 3 meters, 5 meters, 7
meters, 10 meters, 15 meters, 20 meters, 30 meters, 50 meters, 100
meters. Other lengths can be customized according to the
requirements.
According to the fire-proof grade of buildings and the fire-proof
requirements of materials, the integrated wiring system should take
corresponding measures. Flame-retardant cables and fiber optic
cables shall be used for the distribution of discharge cables or
fiber optic cables in flammable areas and building shafts;
flame-retardant, low-smoke and low-toxic cables or fiber optic
cables shall be used in large public places; flame-retardant wiring
equipment shall be used between adjacent equipment or between
handover lines.
Specifiaction:
| Connector | LC/UPC-LC/UPC | Outer diameter of sheath | 2.0 mm |
| Fiber type | 50/125μm MM DX | Jacket color | green |
| Wavelength | 850/1300nm | Jacket material | LSZH |
| IL | ≤0.3dB | Interchangeability | ≤0.2dB |
| RL | ≥20dB | Vibration | ≤0.2dB |
| Working temperature | -60~75°C | Storage temperature | -45~85°C |
| Effective mode bandwidth (850nm) | ≥4700 MHz·km | Effective mode bandwidth(953nm) | ≥2470 MHz·km |
| Polarity | A(Tx) to B(Rx) | Fiber grade | G651 |
Feature:
High end quality,in line with the international IEC quality
inspection standards,by the engineering wiring in admiration,low
loss,return loss is big,high reliability,better stability and
better alignment,
Application:
Fiber-optic jumper products are widely used in communication room,
fiber-optic to home, local area network, fiber-optic sensor,
fiber-optic communication system, fiber-optic connection
transmission equipment, national defense preparedness and so on.
It is suitable for CATV network, telecommunication network,
computer optical fiber network and optical test equipment.
Subdivision is mainly applied to several aspects.
1. optical fiber communication system
2. optical access network
3. optical fiber data transmission
4. fiber CATV
5. LAN (LAN)
6. test equipment
7. optical fiber sensor
