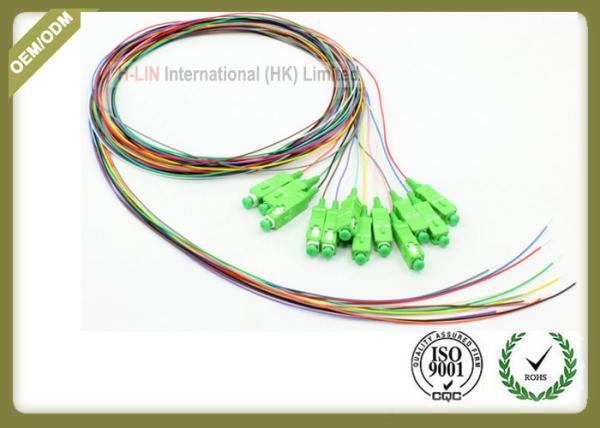

12colors SC APC fiber optic pigtail 0.9mm diameter 1meter length
Product Description:
Fiber Optic Pigtail only one end has a connecting head, and the
other end is a broken end of a fiber optic cable, connected with
other fiber core by welding, installed in the fiber terminal box,
used to connect the fiber cable and terminal equipment.
The tail fiber adopts advanced equipment and instruments and the
most stringent production test standards in the industry. Its
optical and mechanical properties reach the international highest
and IEC standards. Using high quality ceramic core and high quality
optical cable, the insertion loss is very small. It is suitable for
the high demand optical fiber network environment such as
telecommunications, broadcasting and television.
Adopt the most advanced grinding technology in the industry.
No scar and no dirt on the face.
Specifiaction:
| Type | SM | MM |
| parameter | UPC | APC | UPC | PC |
| IL | ≤0.2dB | ≤0.2dB | ≤0.3dB | 0.3dB |
| RL | ≥50dB | ≥60dB | ≥50dB | ≥35dB |
| Max attenuation | 0.4dB@1310nm | 0.4dB@1310nm | 3.0dB@850nm | 3.0dB@850nm |
| 0.3dB@1550nm | 0.3dB@1550nm | 1.2dB@1300nm | 1.2dB@1300nm |
| Attenuation | SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km |
| MM:850 nm≤3.0dB/km; 1300 nm≤1.0dB/km |
| Durability | ≥1000/Matings |
| Working operating | -30℃~ +70℃ |
Feature:
Insertion loss is low
High return loss
Small volume and high density
High precision mechanical properties
Easy installation and operation
Application:
Optical fiber communication room / network cabinet
Optical cable transfer box
Image transmission CATV
FTTH, cable TV, LAN,,Wan
This one pigtail is simplex 0.9mm pigtail,it can be connected by
ST,FC,SC,LC,no matter for color jacket or the boot of
connector,there are various color for option.it can be supplied as
request.
Fiber Optic pigtail usually diameter is 0.9mm,SM can be white color
or yellow color jacket or even can be 12colors a pack.Can be made
as client's request.And MM usually is orange color.
Our company do not have MOQ limit for pigtail,also it can be packed
by plastic bag or plastic box.
All the connector used high quality plastic or metal material,and
san huan ceramic ferrule,yantze fiber or corning fiber.
H-LIN pigtail all use the good material of plastic
parts,ferrule,cable,and only can be deliveried after step by step
strictly testing.
ABS PBT raw material environmental protection plastic fittings,
aluminum oxide and copper nickel plating, stainless steel metal
fittings, mechanical properties flexible, plug-in service life more
than 1000 times, high-quality metal parts after pressing tensile
strength greater than 200N
