GJYXFCH 1/2/4core FTTH Drop Cable
Definition of GJYXFCH Fiber Optic Cable
GJYXFCH Fiber Optic Cable is the type of fiber optic cable with a
two parallel fiber reinforced plastic positioned at the center.
These parallel fibers are meant to offer the necessary support to
the cable. Consequently, GJYXFCH Fiber Optic Cable has steel with
on side to prevent the cable from breaking in case of any
mechanical damage. Additionally, the cable is covered by a black
LSZH sheath. This is one the widely used fiber cables worldwide.
It is very light in construction and easy to install, generally
used for connecting main distribution frame to consolidation point
in home, apartment or offices. Industry standard connectors can be
used for direct termination because of standard 250µm fiber size,
Bow-type (butterfly type) drop cable for duct fiber optic cable.
Feature
Good uniformity of the outer diameter of tight buffer fiber and
excellent strippability
Good performance of flame-retardant
Low induced attenuation within the operating temperature range
The excellent geometrical dimension of the fiber
Special Low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property;
Two parallel FRP strength members ensure good performance of crush
resistance to protect the fiber;
Simple structure, light weight, and high practicability;
Novel flute design, easily strip and splice, simplify the
installation and maintenance;
Low smoke, zero halogen, and flame retardant sheath.
Technical Advantages
1.Access network, fiber to the home.
2.Support the internet, CATV and telephone
3.High bandwidth, easily reach 100M
4.Flexible network construction, reduce the cost of installation
and maintenance, convenient for network management.
5.Usable equipment ports, easy to increase the user and expand
accommodates gradually.
6.Support more network increase service in future.
Technical Parameters
| fiber count (core) | Cable diametre (mm) | Weight (kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N) | Bending Radius
Static/Dynamic
(mm) |
| 1 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| 2 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
| 4 | (2.1±0.1)×(5.1±0.1) | 21 | 1500/2500 | 500/1300 | 15/30 |
Optical characteristics
| No. | Fiber type | G.652 | G.655 | 50/125μm | 62.5/125μm |
| 1 | Attenuation
(+20℃) | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| 2 | Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| 3 | Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| 4 | Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | | |
Application
Use for duct;
Used as interconnect lines of equipment, and used in optical
connections in optical communication rooms and optical distribution
frames;
Used in indoor cabling, especially used as distribution cable;
Used for local communication;
From outdoor duct application to indoor wiring;
Indoor cabling and end users directly cabling;
Access building cable;

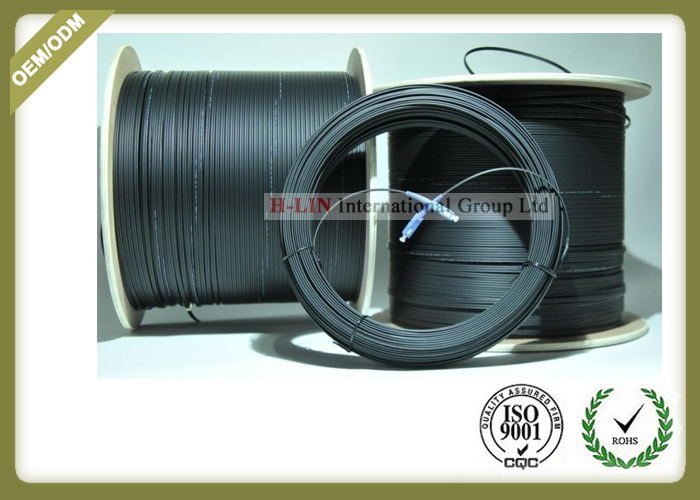

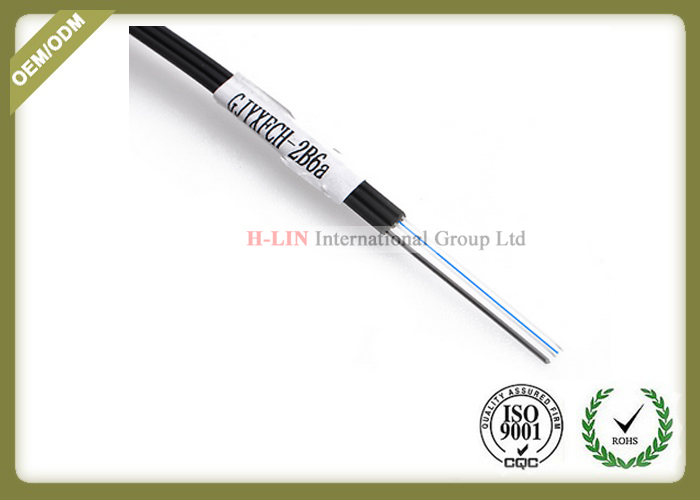

Product Show
