2core Steel Wire Indoor GJXH FTTH Fiber Optic Cable
Product Description
FTTH indoor cable, the optical fiber unit is positioned in the
centre. Two parallel Fiber Reinforced steel wires are placed at the
two sides. Then the cable is completed with a black or color LSZH
or PVC sheath.
--- Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property
---Two parallel Steel wire strength members ensure good performance
of crush resistance to protect the fiber
---Simple structure, light weight and high practicability
---Novel flute design, easily strip and splice, simplify the
installation and maintenance
Features
* The optical cable has small diameter, lightweight, low cost,
lowconstruction cost.
* It is suitable for mechanical splicing technology, fast, and
flexible.
* The optical cable has high-tension and
anti-squashforce,self-supportingstructure can meet the requirement
of 50 meters pull-fly.
* Ituses aromatic polyamide materials to be the strengthen
material.
* The optical cable is soft, good bending performance, and ensure
that thebendingperformance can meet the requirements.
* It uses low smoke zero-halogen material, ensure that the cable
can meettherequirements for the flame-retardant materials indoor.
* The optical fiber is the bend insensitive fiber which can meet
requirementofITU-T G.657.
* High-carbon steel wire should be used for Self-supporting
strengthendevice of optical cable, superior tensile properties
contented.
Specification
 | Part Number | Bow-Type Drop Cable GJXH |
| Fiber Count | 2 core (1core, 4 core also) |
| Strength Member | Two parallel steel wire |
| Cable Dimension (WxH approx.) | 2 X 3mm |
| Out Jacket | PVC or LSZH |
| Out Jacket color | black or white |
| Application | FTTH cable (Fiber to the home), used indoor, Access network |
*The color arrangement of fiber is specified in the color
identification table
*Other structure and fiber count are also available according to
customer requirements
Application:
Withthe development of the telecommunications industry, the
communications networksdevelop from theunitary voice service to the
full-service integratedcommunications networkwith various digital
services of voice, data, and video.The construction of optical
networks develops from the backbone network, corenetwork to the
MANand access net works. Since the fiber with frequency bandwidth
has the strengths of high transmission capacity and
lowattenuation,FTTH supports various kinds of services, the
features such aswider bandwidth,convenient maintenance are the
foundation for our company todesign the dropoptical cable, which is
applicable to the accession of the user’send in thebroadband access
network.

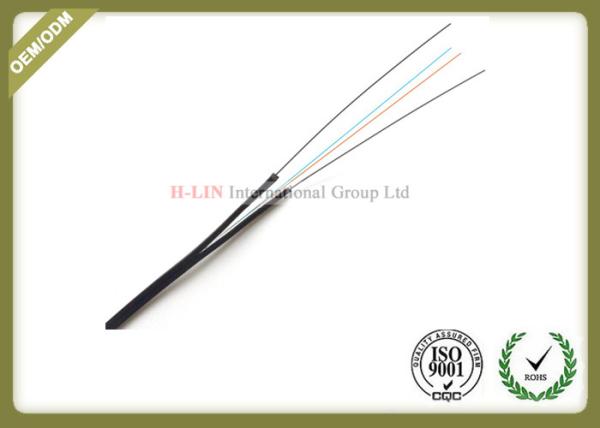

Product show
