    1 / 2 / 4 Core Fiber Optic Drop Cable PVC Material Jacket With Butterfly Flat Construction

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : GJXFH
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Kilometer/Kilometers per Day
    Delivery Time : 3-5Days
    • Product Details
    • Company Profile

    1 / 2 / 4 Core Fiber Optic Drop Cable PVC Material Jacket With Butterfly Flat Construction


    1/2/4 core FRP Indoor GJXFH FTTH Fiber Optic Cable


    Product Description

    GJXFH FTTH Indoor Drop Cable uses butterfly flat structure, whose optical fiber unit is positioned in the centre. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning protection and anti-electromagnetic interference. FTTH cables are ideal for indoor cabling, end users directly cabling, and access network.


    Features

    • Good waterproof preformance
    • Low smoke, zero halogen and flame retardant sheath
    • Smaller diameter, simple structure, light weight, and high practicability
    • FRP strength member ensures anti-electromagnetic and crush resistance
    • Special low-bend-sensitivity fiber provides high bandwidth data transmission
    • Novel flute design, easily strip and splice, simplify installation and maintenance

    Specification


    ItemParameters
    Number of cores124
    Strength memberMaterialFRP
    Outer jacketMaterialLSZH( Oxygen index≥26%)/PVC
    ColorWhite/Black/customized
    Cable diameter(mm)2.0±0.2*3.0±0.2
    Bending Radius( Long/Short term)10D/20D(mm)
    Tensile performance(Long/Short term)100/200N
    Crush Load(Long/Short term)300/1000(N/100M)
    Operating/Storage Temperature-40 to +85 °C


    Application:


    Access network

    Local area network (LAN)

    Used end users directly cabling

    Fiber optic communication system

    FTTH (fiber to the home) indoor cabling and distribution

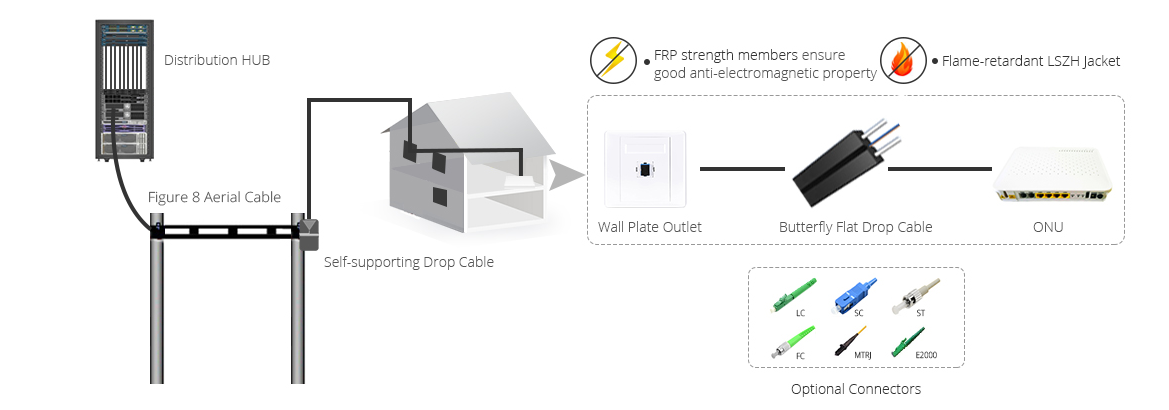

    Ideal Using of Butterfly Flat Indoor FTTH Drop Cable

    Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's

    very suitable for indoor cabling, end users directly cabling, and access network.

    Product show







    Quality 1 / 2 / 4 Core Fiber Optic Drop Cable PVC Material Jacket With Butterfly Flat Construction for sale
