1 core Steel Wire Indoor GJXH FTTH Fiber Optic Cable
Product Description
GJXH Fiber Optic Cable is one of the most useful types of the fiber
cables. This type of fiber cable has been widely used as accessing
cable in a building. Consequently, the GJXH Fiber Optic Cable is
also used in indoor cabling particularly for FTTH. Additionally,
GJXH Fiber Optic Cable has a simple structure. Most of the
technicians like GJXH Fiber Optic Cable due to its lightness and
that make it portable everywhere. Also, the GJXH Fiber Optic Cable
is highly recommended by professional technicians due to its
simplicity to install.
The optical fiber unit is positioned in the central. Two parallel
fiber reinforced steel wire are placed at the two sides. Then, the
cable is completed with a black(white...) color LSZH or PVC sheath.
Features
1. Simple structure, lightweight and high tensile strength
2. Special groove design, easily strip and splice, simplified
installation and maintenance
3. Two parallel steel wires strength members ensure tensile
strength
4. Crush resistance and flexibility
5. Low smoke zero halogen and flame retardant sheath,
environment-friendly and good security(PVC is also can be made)
The installation way of GJXH Fiber Optic Cable is considered to be
indoor and therefore, it makes the cable most suitable to be used
for local communication. Nevertheless, GJXH Fiber Optic Cable is
the best known cable to efficiently access building cables. On top
of that, the GJXH Fiber Optic Cable is the most suitable cable for
the digital signal transmission. In reality, the GJXH Fiber Optic
Cable has changed the real face of the fiber cable industry
completed.
Specification
| Item | Contents | Value |
| Fiber Count | 1 | 2 | 4 |
| Strength member | Material | Steel Wire |
| Diameter(mm) | 0.4 |
| Sheath | Thickness(mm) | ≥0.4 |
| Cable Diameter(mm)Approx | 2.0*1.6 |
| Cable Weight(KG/KM)Approx | 8~8.5 |
| Operating Temperature Range(℃) | —40~+70 |
| Tensile Strength Short/Long Term(N) | 200/100 |
| Crush Resistance Short/Long Term(N/100mm) | 1000/500 |
*The color arrangement of fiber is specified in the color
identification table
*Other structure and fiber count are also available according to
customer requirements
Application:
Used for indoor wiring
The end user with cable directly
Building into the cable
Structure of GJXH

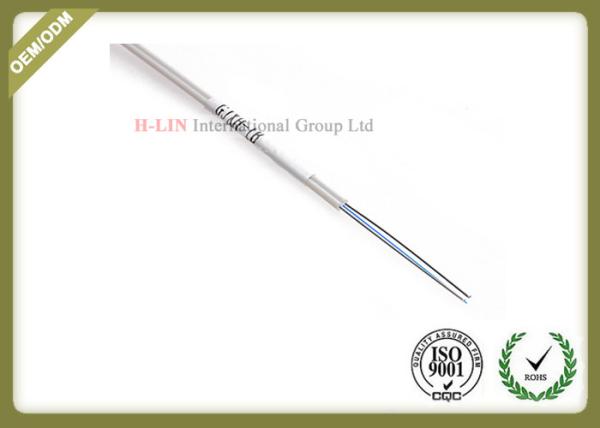

Product show
