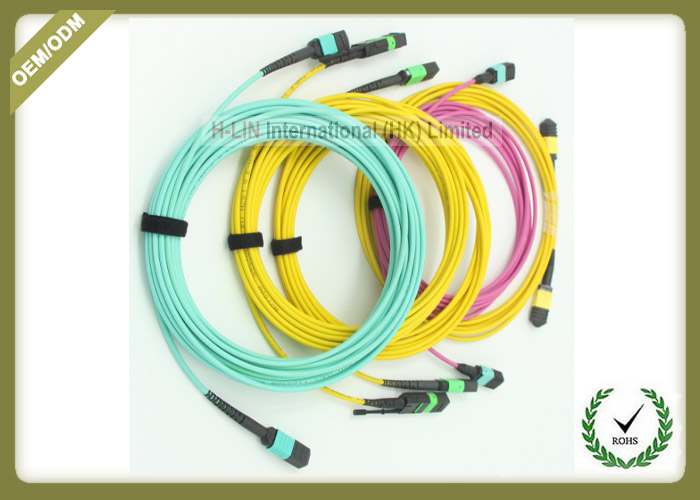

Optical fiber jumper MPO/FC single mode 12 core bundle optical
fiber jumper MPO switching optical fiber jumper
Product Description:
MPO (Multi-fiber Push On) is collectively called MT series
connector. The core of MT series connector is precisely connected
with the guide pin (also called PIN pin) by two 0.7mm diameter
guide holes on the end face of the core. MPO can have 2-12 core
design, and can be up to 24 core. At present, the most used
connector is 12 core connector. The compact design of MPO makes it
have a large number of cores and a small volume. It is widely used
in the interconnection of FTTX, 40/100G SFP, SFP + and other
transceiver devices in the high density integrated fiber line
environment. With 16 years of production management experience,
Jiawan can provide a variety of switching and non-switching MPO
jumpers. There are many types of switching MPO, such as bands and
bundles. Through branching devices (round or square), 2-24 core 0.9
or 2.0 fiber optic cable branches can be switched out. The type of
connection head is specified by the customer, and the length and
other requirements are optional by the customer. The products meet
the requirements of Telcordia-GR-326, IEC and Rohs.
MPO connector also has two methods, with fixed needle male head,
and without needle female head, generally not required, the default
is the mother head.
According to the connection mode of both ends, the arrangement
order of optical fibers has special requirements. The arrangement
of optical fibers includes parallel arrangement, cross arrangement,
etc. Please confirm the connection mode with the form of drawings.
Specifiaction:
| Type | SM | MM |
| parameter | UPC | APC | UPC | PC |
| IL | ≤0.2dB | ≤0.2dB | ≤0.3dB | 0.3dB |
| RL | ≥50dB | ≥60dB | ≥50dB | ≥35dB |
| Max attenuation | 0.4dB@1310nm | 0.4dB@1310nm | 3.0dB@850nm | 3.0dB@850nm |
| 0.3dB@1550nm | 0.3dB@1550nm | 1.2dB@1300nm | 1.2dB@1300nm |
| Attenuation | SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km |
| MM:850 nm≤3.0dB/km; 1300 nm≤1.0dB/km |
| Durability | ≥1000/Matings |
| Working operating | -30℃~ +70℃ |
Application:
•Industrial automation and control bus system
•Industrial robots intelligent system and servo system
•Communication exchange system
•Digital multimedia systems
•Medical sensing system
•Power system,ect
MPO/MTP applications, compatibility is extensive, derived from high
quality, MPO/MTP 1U 12 core 24 core 2U48 core 96 core wiring rack
integrated module perfect fit connection, 10G 40G 100G fiber
network card, 10 Gigabit fiber optic equipment seamless compatible
transmission smoothly
