    LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : LC/UPC pigtail
    Certification : CE/ROHS/IOS9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Piece/Pieces per week
    Delivery Time : 5days after payment
    • Product Details
    • Company Profile

    LC / UP Simplex Fiber Optic Patch Cord 1310nm Wavelength With PVC / LSZH Jacket

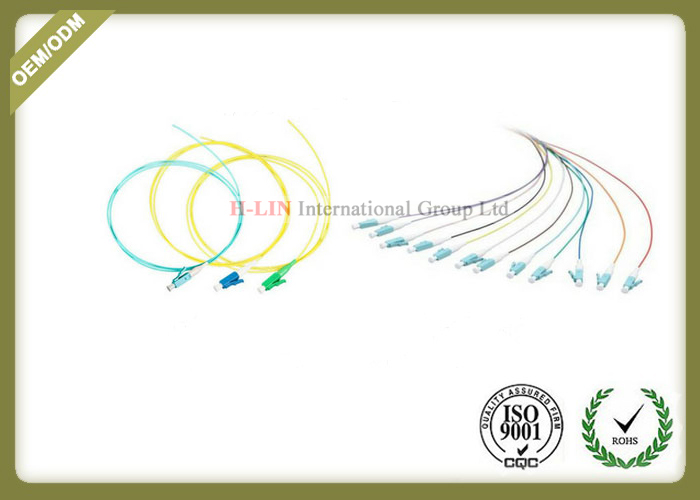

    LC/UPC Single mode simplex fiber Optic pigtail 0.9mm PVC Jacket


    Product Description
    Fiber optic pigtail is only one end has a connector, through the welding and other fiber optic cable core connected, often appear in the fiber terminal box, for connecting fiber optic cable and fiber transceiver (Also used between couplers, jumpers, etc).


    Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.


    Specifiaction

    Connector ALCConnector BUnterminated
    Fiber Mode9/125μmFiber TypeSimplex
    PolishUPCCable Diameter0.9mm
    Jacket MaterialPVCJacket ColorYellow
    Wavelength1310nm/1550nmDurability>1000 Times
    Insertion Loss≤0.3dBInterchangeability≤0.2dB
    Return Loss≥50dBVibration≤0.2dB
    Operating Temperature-40~75°CStorage Temperature-45~85°C


    Features
    High credibility and stability
    Low insertion loss, high return loss
    microscope inspecting
    Good in repeatability and exchangeability

    Excellent Polished and 100% tested


    Applications:

    • Data transmission
    • Telecommunication
    • WBN
    • Testing equipment
    • Optical fiber CATV
    • LAN indoor
