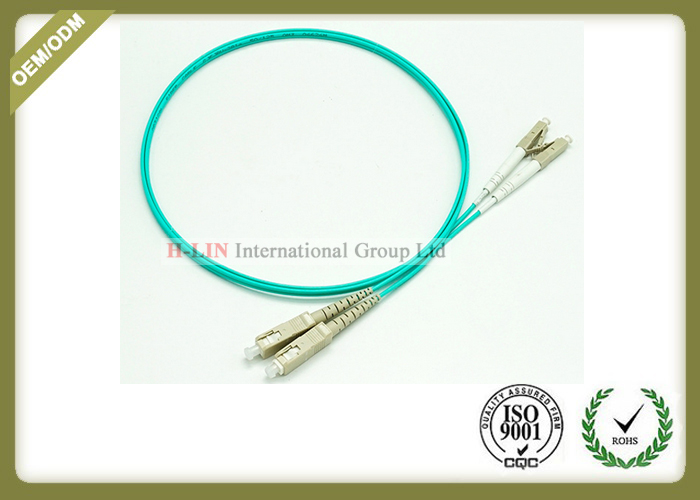

LC to SC OM3 Fiber Patch Cable Multimode Duplex
Product Description
A Multimode OM3 50/125um Fiber Patch Cable with Future-Proof Speed
and a Reliable Connectivity. This cable provides exceptional
transmission performance and low signal losses. It has easy to
identify white boots with yellow (A, B) Plastic rings markers and
also feature a Removable dust caps for a clean fiber and a great
connectivity.
Features
Simplex or duplex or multi fiber assemblies
Riser or Plenum rated, LSZH and RoHS cables available
Low insertion loss, IEC, TIA/EIA, Telcordia compliant
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode,
50/125 multimode and 62.5/125 multimode
0.9 / 1.8 / 2.0 / 3.0 / mm outer diameter fiber optic cables
PC, UPC, and APC polish types
Good packing, competitive prices and very fast delivery
100% geometry test anc IEC cleaning test are available
OEM service is avaibable
Maximum Bandwidths and Distance of Different Multimode Fibers
| Fiber Type | Core Diameter | bandwidth | 1Gbps Distance | 10Gbps Distance |
| 850nm Mhz*km | 1300nm Mhz*km | @850nm | @1300nm | @850nm | @1300nm |
| OM1 | 62.5 µm | 200 | 500 | 275m | 550m | 33m | 300m |
| OM2 | 50 µm | 700 | 500 | 750m | 550m | 150m | 300m |
| OM3 | 50 µm | 1500 | 500 | 1000m | 550m | 300m | 300m |
| OM4 | 50 µm | 3500 | 500 | 1000m | 550m | 550m | 550m |
Specification
| Connector | LC to SC | Jacket OD | 2.0mm |
| Fiber Type | 50/125μm | Fiber Count | Duplex |
| Polish Type | UPC to UPC | Jacket Material | PVC/LSZH/OFNP |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Minimum Bend Radius | 30mm | Storage temperature | -40~75°C |
| Fiber Grade | G.652.D | Polarity | A(Tx) to B(Rx) |
H-Lin lso provides OEM services, such as length, color, fiber grade,
fiber connector, specification, material, package etc.
Applications
1, Telecommunications or Data communications
2, Telecommunications, Military industry, Medical,
3, CATV, LAN, MAN, WAN, Test & Measurement
4, Systems Integration for Railway, Metro and Access Network
5, Fiber to the Indoor (FTTX) Test

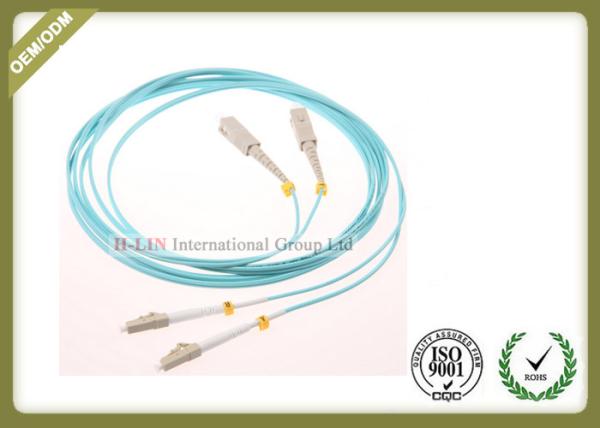

Products Show
