    8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : Cat6 SFTP cable
    Certification : UL,ROHS,CE,QC,CCC.
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 60000 Box/Boxes per Month
    Delivery Time : 8days after payment
    • Product Details
    • Company Profile

    8 Conductors Network Fiber Cable , Cat6 SFTP Cable With 0.58mm Diameter Pass Fluke Test

    Wires cable laptop computer use Cat6 Ethernet SFTP network cable OEM available CE/ROSH/UL


    Product introduction:


    Name:Six kind of double shielded network line
    Model: CAT6 S-FTP 23AWG
    Line diameter: 23AWG (single strand 0.57MM)
    Material: copper content 99.99% oxygen free copper
    Insulation: 0.98MM HDPE (high density polyethylene)
    Shielding layer: transparent mare film +0.50MM single copper clad aluminum ground wire
    Aluminum foil +96*0.12MM copper clad aluminum woven network
    Sheath: PVC environmental protection sheath
    External diameter: 6.5 + 0.1MM
    Length: 300 meters foot
    Packing: high grade color box
    Warranty: 50 years (human factors, except natural disasters)
    Application: Applicable to home decoration, broadband network construction, intelligent community, commercial office buildings, hotels, transportation departments, campus network and other occasions


    Oxygen free copper 99.99%, single crystal oxygen free copper produced by UP-OCC technology, without directivity, high purity, corrosion resistance, and extremely low electrical impedance, makes wire rod suitable for high speed and high quality transmission signal


    Transmission performance exceeds TIA/EIA-568B six standards
    Impedance: 100ohms + 15, IMHzto 200MHz
    Transmission delay: 538ns/100m max.@100MHz
    Delay offset: 25ns Max
    Bending radius: 1 inches (4 times the diameter of cable)
    Conductor resistance: 8.9 ohms max/km
    Capacitor: 5.6NF max/100m
    DC resistance: less than 7.16 Omega
    Pressure resistance: 300 volts AC or DC
    Rated rate: 70 nom%
    UL/NEC level: CMR
    Accreditation: UL listed file no.E138034 ETL verified TAI/EIA-568-B categorg5e
    Temperature of working environment: - range from 20 to 75
    The temperature of the storage and transportation environment: - between 20 and 80


    Specification

    Inner conductorMaterialBare Copper
    Diameter0.57 ± 0.01mm (23AWG)
    Insulation(Dielectric)MaterialColor-coded PE (Polyethylene)
    Thickness 0.21mm
    Diameter1.03 ± 0.01mm
    Cross SeparatorMaterialPlastic
    Shielded LayerFirst LayerAluminum Foil
    Second LayerCrystal Foil
    Third LayerAl-Ma Alloy Braid
    Outer JacketMaterialPVC
    Thickness 0.65mm
    Nominal O.D6.80mm ± 0.10mm
    ColorBlue
    Twisted pairN/A

    Pair 1 : Blue, White / Blue

    Pair 2 : Orange, White / Orange

    Pair 3 : Green, White / Green

    Pair 4 : Brown, White / Brown




    No.


    Item


    Conductor


    Pairs No.


    Insulation Dia(mm)


    Jacket Dia(mm)

    Screening Type

    1


    FTP CAT6


    23AWG


    4


    1.10±0.02


    7.0±0.02

    Foil

    2


    SFTP CAT6


    23AWG


    4


    1.10±0.02


    7.5 ±0.02

    Foil+Braids

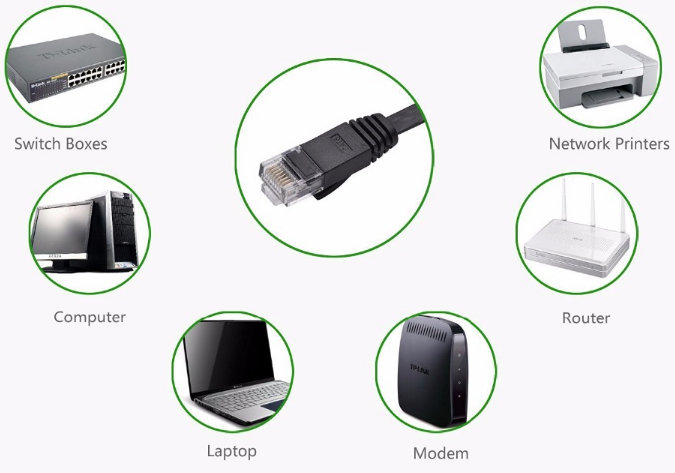

    Application as follow:
