    Pre - Embedded FC / UPC Fiber Fast Connector For FTTH Fiber Optic Drop Cable Patch Cord


    Pre - Embedded FC / UPC Fiber Fast Connector For FTTH Fiber Optic Drop Cable

    FC/UPC FC/APC FC Fast Connector for FTTH Fiber Optic Drop Cable Patch Cord


    Description:


    The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

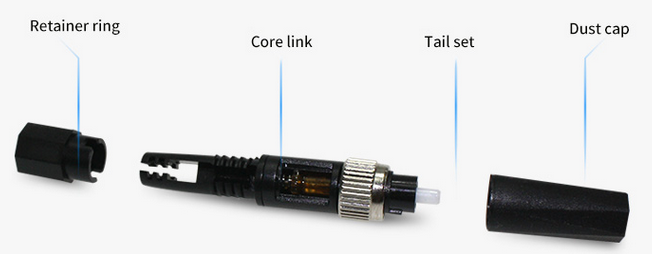

    FC connector structure


    Specification:


    Fiber TypeSM/MM
    Surface polishingFC/UPC, FC/APC
    ColorBlack
    Insertion loss<0.3dB
    Return loss≥60dB
    Plug Times≥1000Times
    Material of shellABS
    Applications2.0/3.0 or FTTH patch cord,ODF,ODB...
    Fiber Diameter125um
    Tensile Strength>40N
    Lock Strength0.2dB
    Temperature Cycle0.3dB
    Virbration0.2dB
    Temperature-40℃~+85℃

    Parameter:


    ConnectorFC
    ParameterUnitSingemode
    Multimode
    PCUPCAPCPC
    Insertion lossdB≤ 0.3≤ 0.2≤ 0.3≤ 0.3
    Return lossdB≥45≥50≥60≥35


    Features:


    1. Each core has been detected by optical loss,within -0.5dB, which has reached telecommunicaiton standard.

    2. No need to train potical fiber cutting, or to observe the cutting end face and the fiber has a guide slide.

    3. Strong adaptability, repeated use, more convenient operation

    4.60 seconds installation time

    5.UPC, APC polishing optional

    6.FTTH cable, fiber optic cable optional

    7.Reliable durable and superior optical performance


    Application:


    • Distribution Frame & Patch Panels
    • Fiber optic patch cord& Pigtail
    • Telecommunication Networks
    • Data processing networks
    • FTTH(Fiber to the home)
    • Local area network(LAN)
    • Test equipment
    • CATV&CCTV
