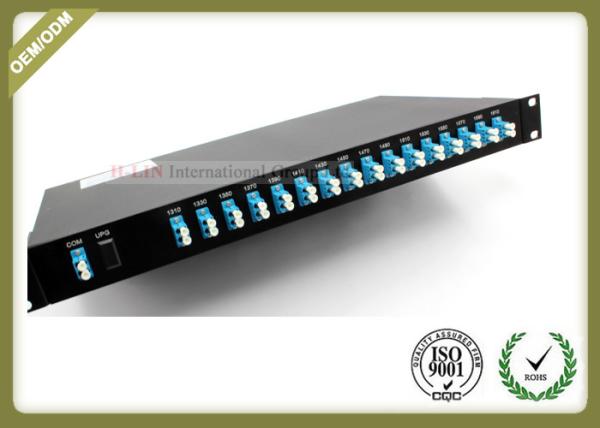

1U 19 inch Rack Mount Single fiber /Dual fiber 1X16CWDM Mux and
Demux
Description:
1x16 CWDM Mux and Demux is a multiplexed and demultiplexed coarse
wave division multiplexer (CWDM) installed in a chassis with a
drawing process, using a 1U box (19 inches wide, high 44.5mm), and
a fiber adapter on the front panel of the 1U chassis, allowing 1x16
CWDM Mux to connect all channels to the optical adapter on the
chassis. The CWDM inside the rack can be installed on the 19 inch
cabinet immediately. The maximum IL of each channel for 1X16 CWDM
Mux and Demux is less than 4.5dB, and when a smaller IL is
required, the company can make IL less than 3.2dB, and of course it
will be more expensive. The maximum capacity of each channel of the
2 1X16CWDM is up to 2.5G, and all CWDM wavelengths can be selected
at the 18 wavelengths of each 20nm at the wavelength 1270~1610nm.
According to the customer's requirements, the MUX/DEMUX's coarse
wavelength division multiplexer can be customized for the 1~18
channel. Suitable for service access types are Ethernet
10/100BaseT, GE, PDH, SDH (STM-16/STM-4/STM-1), ATM, SOTRT
(OC-48/OC-12/OC-32), FICON/ESCON/FIBER ChanTRl and other access
services. 1x16 CWDM Mux and Demux products comply with ITU-T G.695
standard, YD/T 1327-2004. The company provides a complete set of
CWDM equipment system, wavelength converter (OTU), SFP module,
optical fiber transceiver and so on.
Coarse Wavelength Division Multiplexing (CWDM) is an excellent
choice for increasing bandwidth capacity while keeping costs down.
H-LIN splice/pigtailed ABS module family, based on standard Thin
Film Filter (TFF) technology with a proprietary packaging, offers
you smallest component dimensions combined with an outstanding
performance and reliability.
Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH /
SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro
edge and access networks.
Features
Good working bandwidth
Optical fiber communication system.
Low loss
Optical instruments
High channel isolation
Application
Optical amplifier
High stability and high reliability
Transmission and fiber laser
Optical path free process
System monitoring procedures
Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
| (Mux and Demux) | Indicators | unit |
| Public end | Full band (1260~1610) | nm |
| (Mux and Demux) | 1270,1290,1310……1590,1610(±6.5) | nm |
| 16 channel transmission center wavelength | ＜4.50 or ＜3.20 | dB |
| Isolation | Non adjacent channel | ≥40 | dB |
| Adjacent channel | ≥30 | dB |
| RL | ＞50 | dB |
| Temperature sensitivity | ＜0.005 | dB/℃ |
| Polarization mode dispersion loss | ＜0.10 | dB |
| Polarization mode dispersion loss | ＜0.10 | Ps |
| Directional | ≥50 | dB |
| Maximum injection power | 300 | mW |
| working temperature | -20～+70 | °C |
| Storage temperature | -40～+85 | °C |
| fiber type | SMF-28e |
| Package size | 1x16 CWDM Mux and Demux | 19'' 1U Rack(Aluminum (wire drawing)) | mm |
| Rack mount adapter panel type | Customerized:SC/LC/ST/FC | / |
Remarks: the data above are data without adapters. Other
wavelengths can be customized according to customer requirements
