Gigabit Cat6e network cable 0.58 Solid copper network Wire for
security POE monitoring project
The products of our factory are made of high quality outer skin
PVC70 degree new material (with hand tore without new material)
without reclaiming material, and use the pure copper oxygen free
copper material.
Model: national standard CAT6E unshielded Solid copper Gigabit
network cable
Conductor: 8pcs solid copper 0.58 (positive and negative 0.02
error)
Color: Blue
Packing: 305 meters / box
Rice number: 300 meters foot
Insulating material: new imported raw materials
Application occasions: occasions where environmental requirements
are high.
Maximum transmission frequency: 500M
Working temperature: -30 ~ 60 C
Normal service life: 15 years
Application: it is suitable for Internet bar, government,
telecommunication bureau, broadband Ethernet communication,
intelligent building or residential district integrated wiring
system, local area network system, computer network distribution
system, test equipment and cable TV system, anti-theft monitoring
system, etc.
0.58mm thickening core, cross structure, isolated 4 pairs of
twisted pair lines, reducing crosstalk and echo loss in the
transmission process, the transmission performance is far higher
than the super five standard, the transmission rate is up to 1Gbps
Gigabit network cable, fast Internet, high purity oxygen free
copper produced by UP-OC technology, without direction, high
purity, corrosion resistance and reducing electrical resistance,
the special transmission frequency of engineering is up to 250MHZ
or higher with Gigabit Ethernet application system.
Product Structure
| Model | CAT6e CABLE |
| Conductor Size | 23AWG(0.56mm-0.58mm) |
| Conductor Material | CCA/CCU/BC |
| Number of Conductor | 4 pairs twisted |
| Shield | UTP |
| Insulation Material | PE/HDPE |
| Insulation Diameter | 1.02mm+/-0.01mm |
| Jacket Material | PVC/ROHS PVC/LSZH PVC |
| Outer Jacket Diameter | 6.0mm+/-0.01mm |
| DC Resistance (Max) | 7.4Ω/100m |
| DC Resistance Imbalance | 2.5% |
| Working Capacitance(Max) | 5.4nF/100m |
| Insulation Resistance | 10000 MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -40 °C - +75 °C |
| PVC Jacket Color | As client's request |
| Marking on Jacket | Print client's brand |

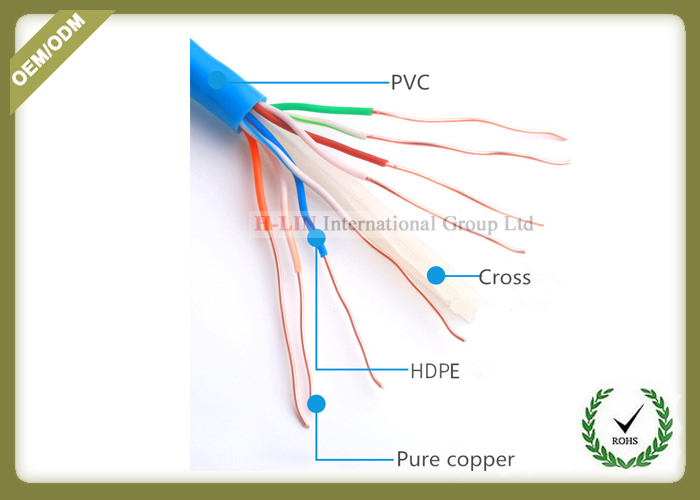

| Cable Structure |  |
Our Advantage:
Our products do not cut corners ,standard code for every line is
convenient for the construction.
Strengthen double-twist anti-aging,tensile resistance,double strand
reinforc
Flame retardant green PVC material has the tensile .PE
insulation,Toughness and Use longer life
After the thickening line core and wire drawing are
formed.Attenuation of around 0.01,No false,every copper wire is the
same material.
