    Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S

    Ask Lasest Price
    Brand Name : H-Lin
    Model Number : FC Blade
    Certification : CE/ROHS/IOS9001
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 Piece/Pieces per Week
    Delivery Time : 1-3 days after payment
    • Product Details
    • Company Profile

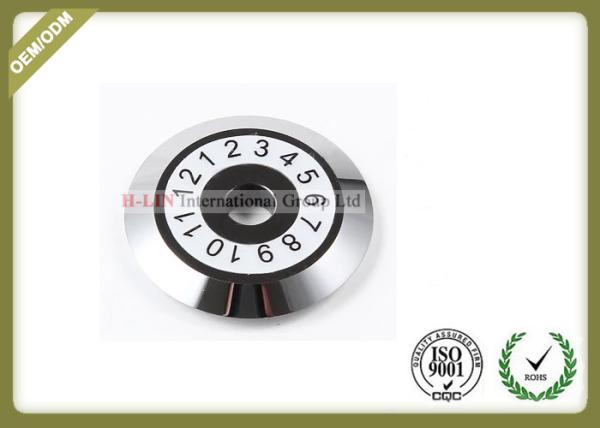

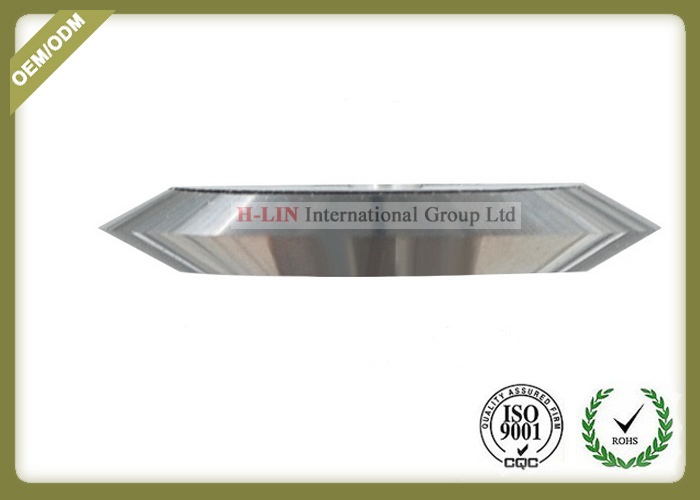

    Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S

    Fiber Cleaver Blade for Single mode fiber optic cleaver FC-6S or all famous brands of Fushion Splice

    Precision Optical Fiber Cleaver Cutting Blade


    Product description


    Fiber cleaver blade characterizes have a high precision of cutting and positioning, smooth cutting face, cutting angle precise and good wear resistance with long service life.

    Advantages


    1. Good wear resistance with a long lifetime.
    2. High precision in cutting with an all-round mirror surface.
    3. Applicable Fiber: Apply to a diameter of 0.08 ~ 0.125mm ordinary single mode or multimode fiber quartz series fiber.
    4. Fiber Count: Suitable for single fiber
    5. End face angle: After cutting the fiber end face squareness ≤ 1
    6. Cleaving length: minimum cleave length 10mm.
    7. Working environment: 0 ~ 40 °C, 90% RH (40 °C no condensation)

    Specification


    FIBER CLEAVER BLADE DESCRIPTION
    Specification22*4*2mm 22*4*3mm
    Blade positions12 and 16
    MaterialTungsten carbide
    Cleaving angle<0.5 degree
    Cutting Life>2500 fibers/position
    ApplicableFUJIKURA ,FURUKAWA,SUMITOMO and so on
    OriginalMade in china

    PhotoRolated positionsApplication BrandApplication Type
    12SumitomoFC-6S FCP-22 FCP-25 FC-6M
    EricssonEPC-P22 series
    16FUJIKURACT-20 ,CT-30,CT-05
    llsintechCl01,Cl03
    InnoVF78,VF18,VF15,VF15H
    JilongKL-260,KL-280,KL-300
    DVPDVP105 106 107

    Product show
