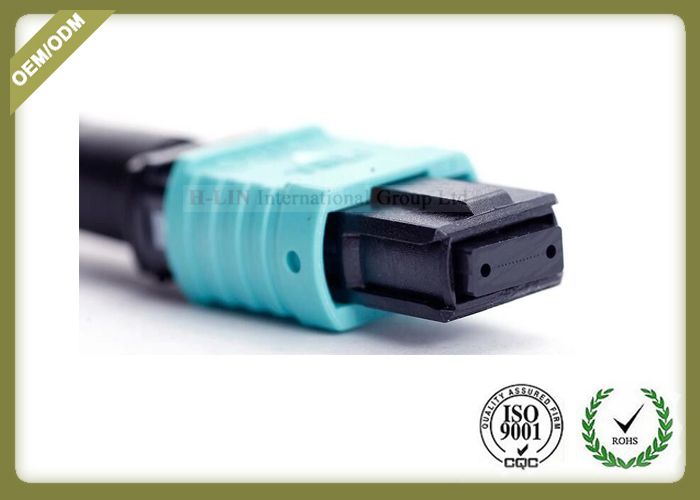

12 24cores Om3 Om4 Multi-Mode MTP MPO TO LC Fiber Optic Patchcord

Product Description:

MPO optical fiber jumper refers to all kinds of optical fiber jumpers that can be produced after MPO connectors and fiber optic cables are processed. The MPO jumper can be designed with a 2~12 core, which can be up to 24 cores, and the 12 core MPO connector is the most widely used. The compact design of the MPO connector makes the MPO jumper core numerous and small. MPO fiber jumper is widely used in the wiring process, which requires high density integrated optical fiber line environment, FTTX and 40/100GSFP, SFP+ and other transceiver modules or devices inside and outside connection applications.

Models of MPO fiber jumper line

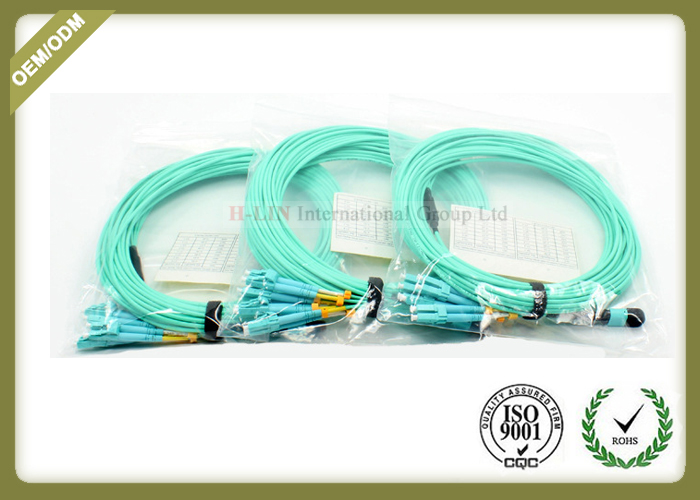

MPO optical fiber jumper is divided into MPO trunk optical fiber jumper and MPO branch optical fiber jumper according to application. MPO backbone optical fiber jumpers are permanent connections to MTP/MPO modules, which can flexibly change the connection form in fiber optic panels. The MPO branch optical fiber jumper provides a transition between multi fiber jumpers and single optical fiber jumpers or duplex connectors. These optical fiber jumpers provide various applications for all networks and devices that require 100G modules, including CFP, CFP2 and CFP4 series. The MPO fiber jumper is divided into connection type and non connection type according to the connection type, and there are various kinds of MPO fiber jumper lines. There are banded MPO fiber jumper line and bundle like MPO fiber jumper. Through the MPO fiber jump line of the branch (round or square) fan out, the branch of the 2~24 core 0.9 or 2 fiber cable can be transferred. The connection head type is specified by the customer. Optional FC, LC, SC and ST types, and all kinds of MPO optical fiber jumpers are in line with Telcordia-GR-326, IEC standards and Rohs requirements.

Performance Specifications

• MTP®/MPO Insertion Loss <0.35dB

• MTP® Elite Connectors Available

• SC and LC, UPC and PC Polish <0.25dB

• SC and LC, APC Polish <0.5dB

• Riser (OFNR) or Plenum (OFNP)

• Fiber Types:

  Plus Corning 62.5/125
• Plus Corning 50/125 Clearcurve Om3
• Corning Clearcurve 50/125 Om4
• Plus Corning SMF-28eXB (G.657.A1)

• Meets All Industry Standards

• RoHs Compliant

Applications:

CATV/Access networks
Telecommunications
Data communications
Test equipment
Component termination

MTP / MPO Termination:
