    Mini Steel Tube Plc Fiber Optic Splitter 1x8 1260-1650nm Wavelength

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : 1*8 Mini SC APC
    Certification : CE/ROHS/IOS9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50000 Piece/Pieces per Month
    Delivery Time : 3~5 working days after payment
    • Product Details
    • Company Profile

    Mini Steel Tube Plc Fiber Optic Splitter 1x8 1260-1650nm Wavelength

    1:8 mini steel tube optical splitter sc/apc micro tube 1x8 fiber optical plc splitter


    Description:


    Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.


    Optical fiber splitter is the same as coaxial cable transmission system. Optical network system also needs to coupling, branching and distributing optical signals. Optical splitter, also known as optical splitter, is one of the most important passive devices in the fiber link. It is an optical fiber connection device with multiple inputs and multiple outputs. M*N is used to indicate that a divider has M input and N output terminals. Optical splitters used in optical fiber CATV systems are usually 1*2,1*3 and 1*N optical splitters.All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


    Parameters


    Product Model1×21×41×81×161×321×642×22×42×82×162×32
    Wavelength1260-1650nm
    Insertion loss(db)3.67.210.213.516.220.53.87.510.71417
    Uniformity(db)0.40.60.811.21.80.611.21.51.8
    PDL(db)0.20.20.30.30.30.40.20.20.30.30.3
    Directivity(db)55
    Reflection loss(db)55
    Operating temperature-40~85℃

    Features

    • Adopt high strength stainless steel, pass salt spray test
    • Ferrule core is less than 0.5um
    • Adopt 100% new raw material, ROHS compliance
    • Low Insertion loss
    • Low PDL Compact Design
    • Good channel-to-channel uniformity
    • Wide Operating Wavelength: from 1260nm to 1650nm
    • Wide Operating Temperature: from -40℃ to 85℃

    Typical Usage


    1. FTTX Systems

    2. FTTH Systems

    3. PON Networks

    4. CATV Links

    5. Optical Signal Distribution


    Compliance
    Telcordia GR-1209-CORE
    Telcordia GR-1221-CORE
    RoHS

    The light splitting is uniform, the transmission is stable, and the light splitting uniformity is good. The optical fiber signal can be evenly distributed to the users needed.


    High quality imported optical chips, imported transmission chips, ensure uniform and stable light splitting, low polarization dependent loss, low ejection reflection, and can meet different wavelength requirements.


    Environmentally friendly PVC skin, anti pull and drag performance is strong, low carbon and environmental protection, safe use, solid heart

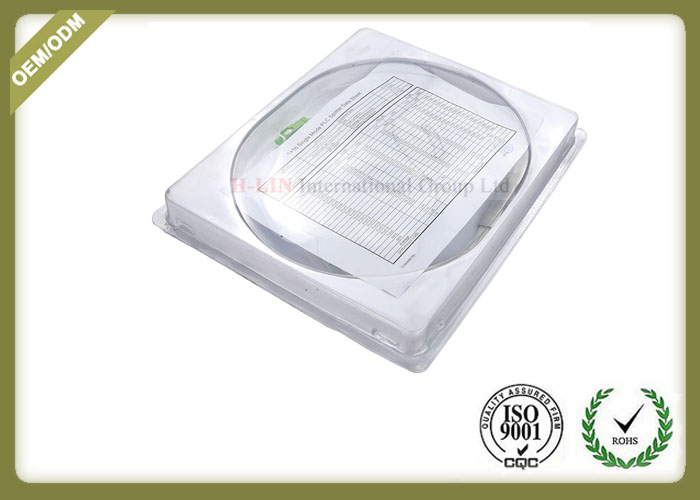

    Package:

    Other PLC splitter type:
