24~144core GYTS Loose tube stranding fiber optic cable with
armoured metallic strength member
Description:
The fibers, 250μm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire, sometimes sheathed with
polyethylene (PE) for cable with high fiber count, locates in the
center of core as a metallic strength member. Tubes (and fillers)
are stranded around the strength member into a compact and circular
cable core. The PSP is longitudinally applied over the cable core,
which is filled with the filling compound to protect it from water
ingress. The cable is completed with a PE sheath.
Specifications:
Special tube filling compoud ensure a critical protection of fiber
Special design compact structure is good at preventing loose tubes
from shrinking
Steel wire used as the central strength member
PSP enhancing moisture-proof
Features
12 core multi mode fiber optic cable
Armoured
Low insertion loss and back reflection loss
Good echangeability
Good Durability
High temperature stability.
Standard: Telcordia GR-326-CORE
Technical Parameters:
| 2-96 fibers | 98-288fibers |
| Max. Tension (N) | Short-term | 1500 | 3000 |
| Max. Tension (N) | Long-term | 600 | 1000 |
| Max. Crushing Resistance (N/100mm2) | 1000 |
| Temperature range(°C) | -40°C-- +70°C |
| Min. Bending Radius(mm) | Install | 20D |
| Min. Bending Radius(mm) | Static | 10D |
| G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation (+20℃) | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
Structure:
1:PE outer sheath
2:corrugated steel tape
3:Jelly
4:Loose tube
5:Metallic strength member
6: Fiber
Application
Local Area Networks(LANS)
Data processing networks
Instrument
Premise installations.
Compliance With
1. TIA/EIA-568-C.3
2. ISO/IEC 11801-2nd
3. RoHS II 2011/65/EU
4. ITU-T G652.D
5. ITU-T G651
Package:

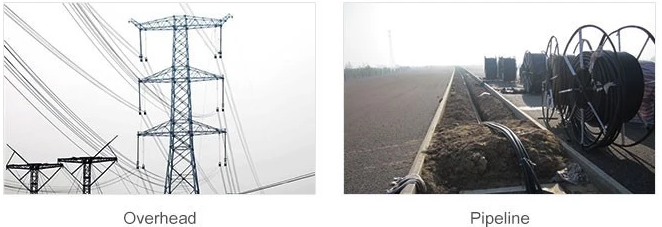

LAYING METHOD:
