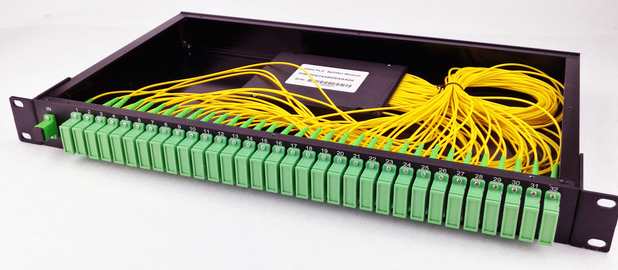

    1U 19" Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : HL-Rack
    Certification : CE/ROHS/IOS9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 Piece/Pieces per Month
    Delivery Time : 3~5working days after payment
    • Product Details
    • Company Profile

    1U 19" Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return Loss


    1X32 SM 1U 19" Rack Mounted Optical PLC Splitter with


    SC/APC Connector


    Product Description


    Fiberey PLC Splitters is used to distribute optical signals to multiple locations for processing. In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal. PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. They are designed for FTTx in PON, CWDM, DWDM and optical cable TV System. It’s also responsible to distribute optical signals from Central Office (CO) to multiple premise locations.We provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


    Rack Mount PLC Splitter features small size, high reliability, wide operating wavelength range and good channel- to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.


    1U 19" Rack Mounted Fiber Optic Splitter Box 1X32 Sigle Mode High Return LossItemRack Mount PLC Splitter
    ModeSingle Mode
    ConnectorSC/APC
    Fiber typeG652D G657A1 G657A2
    Connector typeSC, FC, ST, LC
    Cable Diameter0.9mm/2.0mm/3.0mm

    Features


    • Excellent parameters on IL & RL
    • High channel counts
    • Exceptional reliability and stability
    • Wide Operating Wavelength
    • Wide Operating Temperature
    • Convenient engineering applications

    Optical Parameter


    Parameters1X21X41X81X161X321X64
    Fiber typecustomer specified
    Operating wavelength(nm)1310-1550nm
    Insertion loss(dB)3.8/4.07.2/7.410.5/10.713.5/13.716.5/16.921
    Loss Uniformity(dB)0.60.60.81.21.72.5
    Return loss(dB)50/5550/5550/5550/5550/5550/55
    PDL(dB)0.20.20.30.30.30.4
    Directivity(dB)555555555555
    Wavelength Dependent loss(dB)0.50.50.50.80.80.8
    Temperature Stability(dB)0.50.50.50.80.81
    Operating Temperature(℃)/45
    Storage Temperature(℃)/45

    Applications


    • CATV network
    • LAN, WAN and MAN
    • Testing equipments
    • Fiber optic communication system
    • FTTX access network based on PON structure

    Product Show
