SC Field Assembly Fiber Optic Connector SC APC Fast Connector
Description:
Optical Fast Connector takes use of the latest generation of
Terminal technology. After terminating, both optical and mechanical
performance reach the standard for patchcord, meet the demand for
making patchcord on site by mechanical splicing, have greatly
changed the idea in conventional optical splicing, providing the
great support to FTTx implementation.
Our SC fast connectors make fiber terminations quick, easy and
reliable. These fiber optic connectors offer terminations without
any hassles and require no epoxy, no polishing, no splicing, no
heating and can achieve similar excellent transmission parameters
as standard polishing and splicing technology. Our fast connector
can greatly reduce the assembly and set up time. The pre-polished
connectors are mainly applied to FTTH cable in FTTH projects,
directly in the end user site.
Operation steps as follow:
1> Ensure that the switch is completely opened down and insert the
optical fiber to make it slightly curved and push to the limit.
2> Keep slightly bending and tighten the boot first
3> Uplift switch
4> Put on the blue housing, finish the assembly
Applications:
1) CATV & FTTH
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Data processing networks
7) Video and military active device termination
8) Optical Distribution Frame
9) Optical Network Equipments
Specification:
| Singemode(UPC) | Singemode(APC) | Multimode |
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.2db typical change, 1000 times mating |
| Operating Temperature | -45 to +85 degree |
| Ferrule Hole Sizes | 125.0+1/-0um, Concertricity:≤1.0um | 125.0+1/-0um, Concertricity:≤0.5um | 127.0um, Concertricity: ≤3.0um |
| 125.5+1/-0um, Concertricity:≤1.0um | 125.5+1/-0um, Concertricity:≤0.5um | |
| 126.0+1/-0um, Concertricity:≤1.0um | 126.0+1/-0um, Concertricity:≤0.5um | |
Features:
1. Eliminates cable excess length and pigtail splice storage
2. Factory-installed fiber stub
3. No epoxy or polishing required
4. Quick and easy fiber termination in the field
5. No tool is required for the installation
6. Cost effective

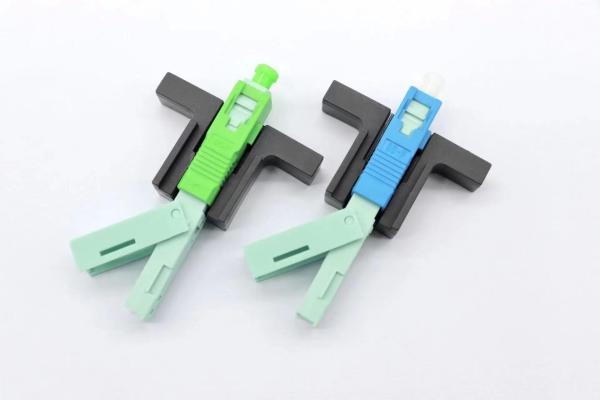

Picture:
