Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours

    Buy cheap Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours from wholesalers

    Buy cheap Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours from wholesalers
    • Buy cheap Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours from wholesalers
    • Buy cheap Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours from wholesalers

    Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours

    Ask Lasest Price
    Brand Name : H-Lin
    Model Number : GJJV-1
    Certification : CE/FC/ROHS
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000 Meter/Meters per Day
    Delivery Time : Shipped in 3 days after payment
    • Product Details
    • Company Profile

    Tight Buffered Indoor Fiber Optic Cable 0.9mm / 0.6mm With 12 Colours

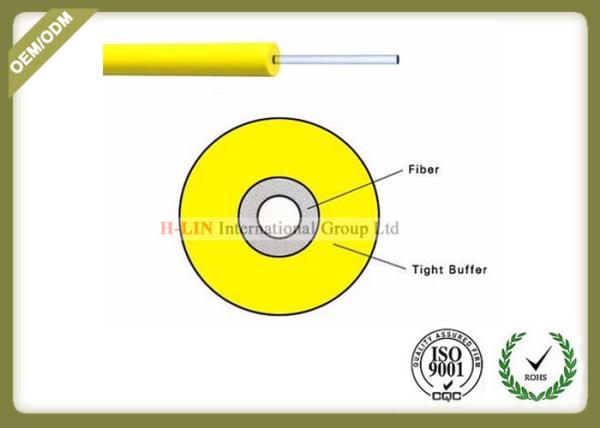

    GJJV Tight Buffer Fiber


    Product Description


    Tight buffer fiber is manufactured by extruding a layer of buffer material (PVC,LSZH,Hytrel , Nylon etc ) on the surface of the fiber.Throught the selection of high-quality material,dedicated equipments and precision moulds for production, the tight buffered fiber delivers excellent performance.


    Characteristic


    • Excellent strippping performance
    • Suited to SM fiber and MM fiber (50um and 62.5um)
    • It is ideal choice of active apparatus used pigtail
    • Excellent temperature performance
    • Buffer material: PVC, LSZH, Hytrel, NYLON,PVDF

    Geometrical Characteristics


    TBF Diameter(um)900±50600 ±50
    TBF Weight(kg/km)0.90.4
    Fiber Cladding Diameter(um)125±1125±1

    Mechanical Characteristics


    max Load(N)Long Term33
    Short Term66
    Bending Radius(CM)Dynamic20×D(D:TBF Diameter)
    Static10×D(D:TBF Diameter)

    Transimission Characteristics


    SMF50/12562.5/125
    1310/1550(nm)850/1300(nm)850/1300(nm)
    Attenuation(dB/km)≤0.40/0.30≤3.5/1.5≤3.5/1.5
    Minimum Bandwidth(MHz.km)---≥400/400≥160/500

    Enviromental Characteristics


    Starage Operating Temperature: -20℃~+60℃


    Work temperature:-20℃~+60℃


    Application


    • Components for various indoor cables.
    • Suitable for patch cords and pigtails.
    • Suitable for communication equipment served
