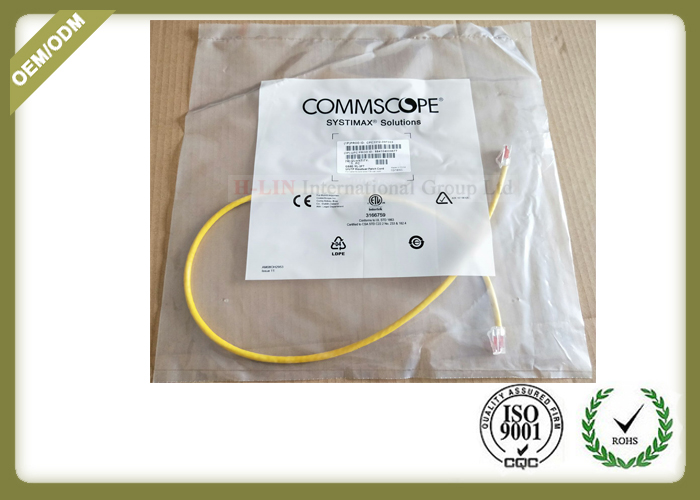

Commscope cat6 unshielded 4 pairs of network patchcord

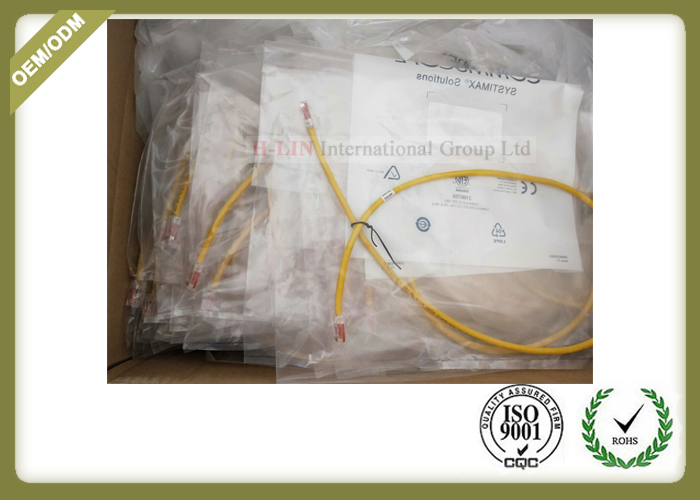

The patchcord is beautifully packaged and its thread is soft. The
brand is famous for its excellent quality.
Use the unique winding method of komp, red crystal head. Fully
comply with the CAT6E transmission standard, after testing the
standard products.
Quality new engineering plastics raw materials (UL certified
environmentally friendly plastic)
Oxygen free 8 core 7 strand pure copper (silk) has first-rate
handle and winding characteristics.
It is widely used in the six kinds of Engineering in the computer
room, and the stability is unparalleled.
Long term engineering test results show that it is easy to pass FLK
(whichever is the test result of the customer).
Product performance:
1, enhanced CFPM design can fully guarantee the excellent
performance of the new GS8E jumpers.
2, the design of patented technology reduces the instability of
jumper performance to a minimum.
3. The barrier free features make the plug jump easier.
4, the design of patented technology reduces the instability of
jumper performance to a minimum.
5, fully meet or exceed the requirements of GigaSPEED XL six
standards.
6. Jumper length is between 1 and 30 meters. There are 10 colors to
choose from.
Product structure:

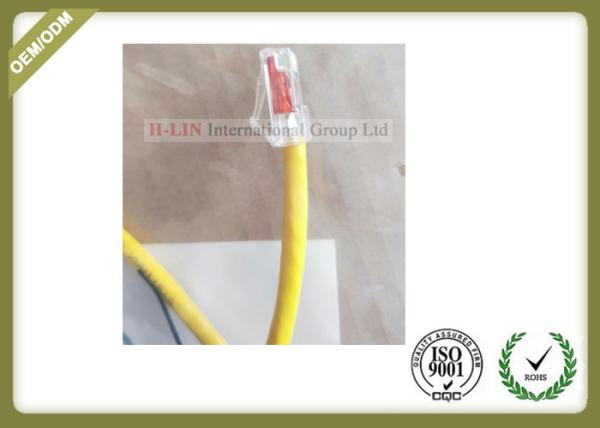

1. RJ45 plug adopts soft tail structure to ensure connection
between cable and crystal head.
2, wiring mode: 568B-568B, 568A-568B (cross connection), 568A-568A;
3, electrical transmission performance fully meets the requirements
of TIA/EIA 568B six standards.
4, RJ45 crystal head inserting times >1000 times;
5, external diameter (mm) 6.50MM, impedance (omega) 100;
Product use:
1, data transmission of structured cabling, transmission of digital
and voice and video signals;
2. Support all applications designed for the 6 cabling system.
| ITEM | | CAT6 UTP 7/0.20BC Light Excellent Quality 1m Cat6 Patch Cord Tester
Cable |
| No. of Cord. | | 4 Pair |
| Conductor | Material | Bare Copper Wire Stranded |
| Construction | 30AWG; 7 / 0.10 ± 0.008 mm |
| Insulation | Material | Polyethylene |
| Thickness | 0.18±0.02 mm |
| Diameter | 0.95 ± 0.05 mm |
| Material | PVC/LSZH |
| Jacket | Thickness | 0.50 mm(Min. Thickness: 0.48mm) |
| Diameter | 6mm |
| Color | optional |
| Length | optional |
| Marking | optional | |
ELECTRICAL PROPERTIES
| |
| Conductor Resistance | Max. 93.8 ohms/km at 20℃ |
| Insulation Resistance | Min. 100 mega ohms-km at 20℃ |
| Dielectric Test | 500V AC /1 min ; No Breakdown |
| Impedance | 100 ohms ± 15% |
| Temperature Rating | 60℃ |
| Voltage Rating | 30V |
