    Indoor fiber optic drop cable 2core SM G652D with black color LSZH jacket

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : GJXFH-2B1
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Kilometer/Kilometers per Day
    Delivery Time : 3-5Days
    • Product Details
    • Company Profile

    Indoor fiber optic drop cable 2core SM G652D with black color LSZH jacket

    Indoor fiber optic drop cable 2core SM G652D with black color LSZH jacket


    Characteristics

    Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;


    Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;


    Simple structure, light weight and high practicability


    Novel flute design, easily strip and splice, simplify the installation and maintenance;


    Low smokeand flame retardant sheath.


    Product Description

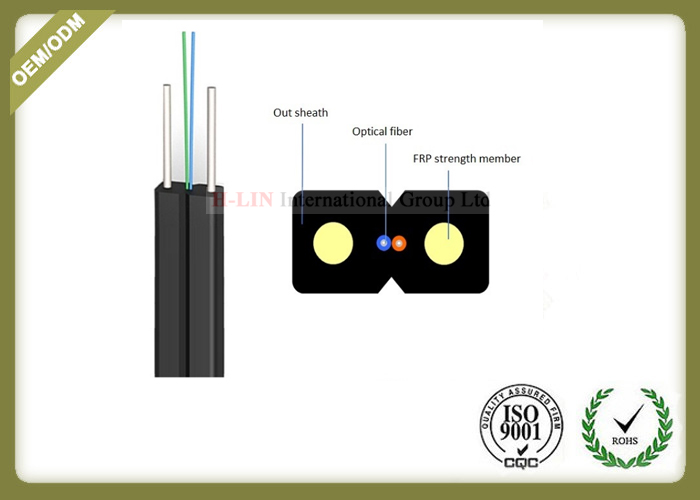

    The structure of butterfly fiber cable (leather wire cable) is to integrate small bending radius single mode fiber and two symmetrical reinforcement in flame retardant sheath. The strength member can be steel wire, KFRP or GFRP, and the sheath material can be flame retardant PVC or low smoke halogen free fuel , and the sheath color can be white, black or user. Other colors to be asked. The sheath structure which is easy to tear and the allowable bending radius makes the installation of optical cable convenient. The fiber optic cable can use G.657 fiber, the fiber has excellent bending performance, small bending radius can be less than 15mm, especially suitable for indoor cabling with small turning radius, such as wall corner, indoor panel.




    Application:

    1. Adopted to indoor distribution.
    2. As pigtail of communication equipment
    3. Suitable for communication equipment servrd
    4. Can be installed conveniently and perated simply

    Fiber Parameters

    No.ItemsUnitSpecification
    G.657A1
    1Mode Field Diameter1310nmμm9.0±0.4
    1550nmμm10.1±0.5
    2Cladding Diameterμm124.8±0.7
    3Cladding Non-Circularity%≤0.7
    4Core-Cladding Concentricity Errorμm≤0.5
    5Coating Diameterμm245±5
    6Coating Non-Circularity%≤6.0
    7Cladding-Coating Concentricity Errorμm≤12.0
    8Cable Cutoff Wavelengthnmλcc≤1260
    9Attenuation(max.)1310nmdB/km≤0.4
    1550nmdB/km≤0.3
    10Macro-Bending Loss1turn×10mm radius @1550nmdB≤0.75
    1turn×10mm radius @1625nmdB≤1.5

    Cable Parameters

    ItemsSpecifications
    Fiber Counts2
    Colored Coating FiberDimension250±15μm
    ColorBlue,Orange
    Strength MemberDimension0.4mm
    MaterialSteel
    Self-Supporting MemberDimension1.0mm
    MaterialSteel
    JacketDimension5.2±0.2mm×2.1±0.1mm
    MaterialLSZH
    ColorBlack

    Mechanical and Environmental Characteristics

    ItemsUnitSpecifications
    Tension(Long Term)N300
    Tension(Short Term)N600
    Crush(Long Term)N/10cm1000
    Crush(Short Term)N/10cm2200
    Min. Bend Radius(Dynamic)mm20D
    Min. Bend Radius(Static)mm10D
    Installation Temperature-20~+60
    Operating Temperature-40~+70
    Storage Temperature

    -40~+70
