    2core Single Mode Duct FTTH Fiber Optic Cable with waterproof tape and strength member Black jacket

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : FTTH-duct
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Kilometer/Kilometers per Day
    Delivery Time : 3-5Days
    • Product Details
    • Company Profile

    2core Single Mode Duct FTTH Fiber Optic Cable with waterproof tape and strength member Black jacket


    FTTH Duct Cable

    Description

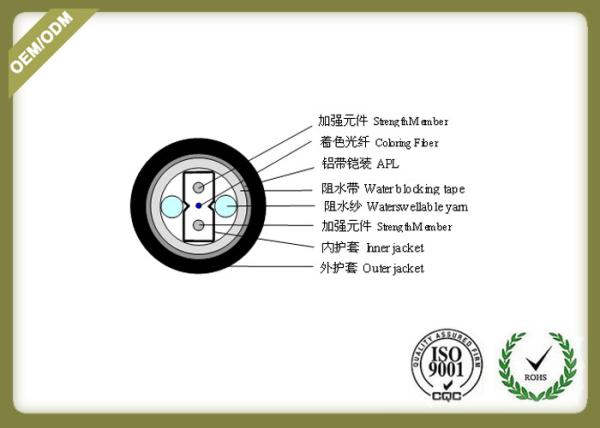

    FTTH Duct cable consists of colored coating fiber, KFPR strength member , Aluminum plastic tape, waterproof tape and outer jacket

    Fiber Type: G.657A,G652, G655 single-mode fiber, A1a or A1b multi-mode cable, or other types of fiber

    Material of jacket: Flame-retardant polyvinyl chloride (PVC), low smoke zero halogen flame retardant polyolefin (LSZH), environmental halogen flame retardant polyolefin (ZRPO), environmental polyethylene (PE) or other material

    Bow-type drop cable Series Cable

    With the rapid development of communication service, the people have an increasing demand on the communication transmission and exchange capacity. Traditional copper-based access solution will not comply with the request of high bandwidth any longer. In the last mile access, from the backbone network to the village or the home, the copper wire bandwidth only can reach 1M to 2M, but the optical fiber bandwidth may easily reach 100M. Fiber to the home (FTTH), using the optical fiber, directly connects the communication line from the LAN to the user. Due to its excellent advantage in bandwidth, FTTH network can support full communication services. With the development of technology and market, FTTH network is deemed to be the "access technology of the future".

    Function and features

    1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
    2. Suitable for the connection of indoor between outdoor.
    3. Aditional Aluminum plastic tape and waterproof tape ensure good performance of tensile strength
    4. Two parallel strength members ensure good performance of crush and tensile strength
    5. Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of Internet work, CATV network and telephone network.


    Cable Data

    Fiber Count

    Cable Dimension

    (mm)

    Cable Weight

    (kg/km)

    Tensile

    (N)

    Crush

    (N/100mm)

    Min. Bend Radius

    (mm)

    Range of Temperature

    (℃)

    Long TermShort TermLong TermShort TermDynamicStatic
    1~27.0473060500100020D10D-40~+70

    Note:
    1. D is outer diameter of the round cable;
    2. The minimum bend radius (static) is 5D when G657 fiber is used.

    Transmission Characteristics


    SMF(Single mode fiber)
    1310/1550(nm)
    (dB/km) Attenuation(dB/km)≤0.40/0.30
    (MHz·km) Minimum Bandwidth(MHz·km)——

    Storage Operating Temperature:-40℃~+70℃

    Package


    Use Wooden Drum or as requirements.

    Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.


    Product Show































    Quality 2core Single Mode Duct FTTH Fiber Optic Cable with waterproof tape and strength member Black jacket for sale
