    FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : FTTH-2core
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Kilometer/Kilometers per Day
    Delivery Time : 3-5Days
    • Product Details
    • Company Profile

    FRP / KFRP Strength Member FTTH drop cable 2 Core SM GJYXFCH with Black or White Jacket


    GJYXFCH 2 core FTTH Drop Cable


    Optical Characteristics


    Fiber TypeAttenuationOverfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link lengthMin Bending Radius
    Conditions1310/1550nm850/1300nm850/1300nm850nm850nm
    UnitdB/kmdB/kmMHZ.kmMHZ.kmmmm
    G652D0.36/0.2216
    G657A10.36/0.2210
    G657A20.36/0.227.5
    50/1253.0/1.0≥500/50030
    62.2/1253.0/1.0≥200/50030
    OM33.0/1.0≥1500/500≥2000≥30030
    OM43.0/1.0≥3500/500≥4700≥55030
    B1-OM33.0/1.0≥1500/500≥2000≥3007.5
    B1-OM43.0/1.0≥3500/500≥4700≥5507.5

    Product Description

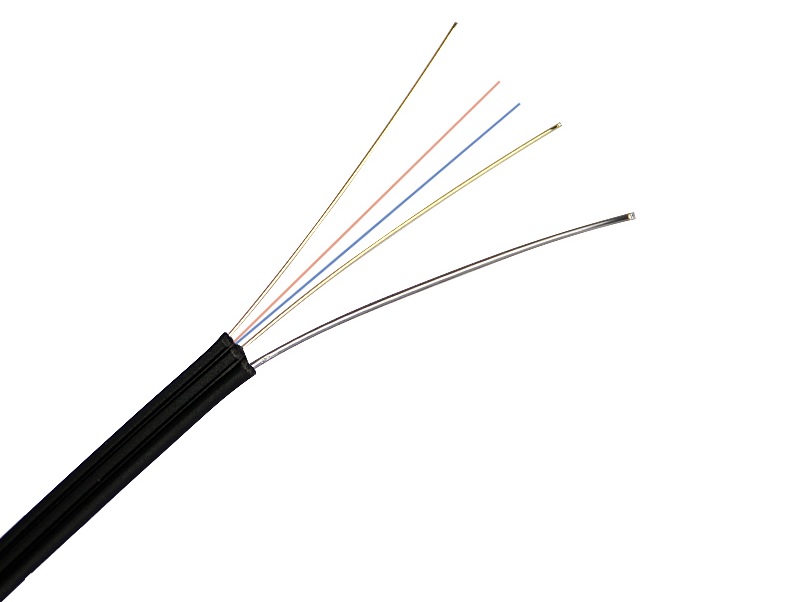

    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.


    Characteristics


    • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
    • Novel flute design, easily strip and splice, simplify the installation and maintenance.
    • Novel groove design, easily strip and splice, simplified installation and maintenance, higher tensile strength.
    • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.

    Cable Parameters


    ItemsSpecifications
    Fiber Count2
    Colored Coating FiberDimension250±15μm
    ColorBlue/Orange
    Strength MemberDimension0.5mm
    MaterialFRP
    Self-Supporting MemberDimension1.2mm
    MaterialSteel
    JacketDimension5.0±0.2mm×2.2±0.2mm
    MaterialLSZH
    ColorBlack/White/Customized

    Technical Parameters


    Fiber CountCable Diameter
    mm
    Cable Weight
    kg/km
    Tensile StrengthCrush ResistanceBending Radius
    Long/Short Term
    N
    Long/Short Term
    N/100mm
    Static/Dynamic
    mm
    1(2.0±0.2)×(5.0±0.2)2060/120300/100015/30
    2(2.0±0.2)×(5.0±0.2)2060/120300/100015/30
    4(2.0±0.2)×(5.5±0.2)2160/120300/100015/30
    6(2.0±0.2)×(6.0±0.2)2260/120300/100015/30

    Application :


    1. All types of fiber cables with different structures
    2. High performance optical network operating
    3. High speed optical routes in buildings


    Product Show
