1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket

    Buy cheap 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket from wholesalers

    Buy cheap 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket from wholesalers
    • Buy cheap 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket from wholesalers
    • Buy cheap 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket from wholesalers
    • Buy cheap 1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket from wholesalers

    1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket

    Ask Lasest Price
    Brand Name : H-LIN
    Model Number : FTTH-1core
    Certification : CE,Rohs
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Kilometer/Kilometers per Day
    Delivery Time : 3-5Days
    • Product Details
    • Company Profile

    1 Core GJYXCH FTTH Self-supporting Outdoor Drop Cable with LSZH Jacket


    Outdoor FTTH Singlemode aerial drop cable with Steel wire Strength Member(1core FTTH)


    Product Description


    FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.

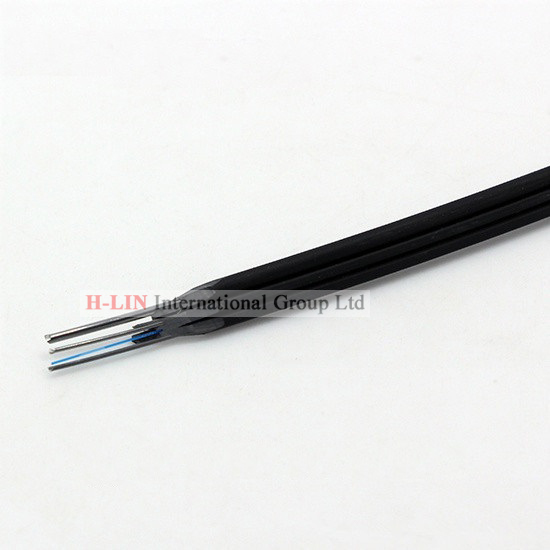

    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.


    Characteristics


    • Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
    • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
    • Simple structure, light weight and high practicability.
    • Novel flute design, easily strip and splice, simplify the installation and maintenance.
    • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.
    • Low smoke, zero halogen and flame retardant sheath.It protect environment,can resist the ultraviolet rays,and prevent dehisce.

    Application


    • Used in access network or as access cable from outdoor to indoor in customer premises .
    • Used as access building cable in premises distribution system.
    • Especially used in indoor or outdoor aerial access cabling.

    Cable Parameters


    ItemsSpecifications
    Fiber Count1
    Colored Coating FiberDimension250±15μm
    ColorBlue
    Strength MemberDimension0.5mm
    MaterialFRP
    Self-Supporting MemberDimension1.2mm
    MaterialSteel
    JacketDimension5.0±0.2mm×2.2±0.2mm
    MaterialLSZH
    ColorBlack/White/Customized

    Technical Parameters


    Fiber CountCable Diameter
    mm
    Cable Weight
    kg/km
    Tensile StrengthCrush ResistanceBending Radius
    Long/Short Term
    N
    Long/Short Term
    N/100mm
    Static/Dynamic
    mm
    1(2.0±0.2)×(5.0±0.2)2060/120300/100015/30
    2(2.0±0.2)×(5.0±0.2)2060/120300/100015/30
    4(2.0±0.2)×(5.5±0.2)2160/120300/100015/30
    6(2.0±0.2)×(6.0±0.2)2260/120300/100015/30
