2core FRP FTTH Indoor Fiber Optic Drop Cable
Brief Introduction
| Introduction | The optical fiber unit is positioned in the center. Two parallel
Fiber Reinforced Plastics (FRP) are placed at the two sides. Then,
the cable is completed with a black or color LSZH sheath |
| Characteristics | 1.Special low-bend-sensitivity fiber provides high bandwidth and
excellent communication transmission property |
| 2.Two parallel strength members ensure good performance of crush
resistance to protect the fiber |
| 3.Simple structure, light weight and high practicability |
| 4.Low smoke,zero halogen and flame retardant sheath |
| 5.Novel flute design, easily strip and splice, simplify the
installation and maintenance |
| Application | 1.Access network , fiber to the home |
| 2.Support the Internet , CATV , telephone and more network service
in the future |
| Standards | Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC
60794-2-10/11,etc; and meet the requirements of UL approval for
OFNR and OFNP |
Order Optional Information
Jacket material: PVC (Environmental lame-retardant
polyvinylchloride), LSZH (Environmental low smoke zero halogen
flame retardant polyolefin), or other customerized material.
Jacket color: blue, orange, green, brown, gray, red, black, yellow,
and violet, pink, aqua.
Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm,
A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1-
EasyBad G.657, E1.1- EasyBad Plus G.657, etc.
Cable Dimension: the nominal cable dimension, or other
constomerized dimension.
Fiber Count: total number of fibers in the cable.
MOQ: 1km
| Cable Code | Cable Count | Cable Diameter | Cable Weight | Tensile | Crush | Crush resistance |
| (mm) | (kg/km) | (N) | (N/100mm) | (mm) |
| Long Turn | Short Turn | Long Turn | Short Turn | Dynamic | Static |
| GJXV-02(G.657A) | 2 | 2.0*3.1 | 8.5 | 40 | 80 | 1100 | 2200 | 30D | 15D |

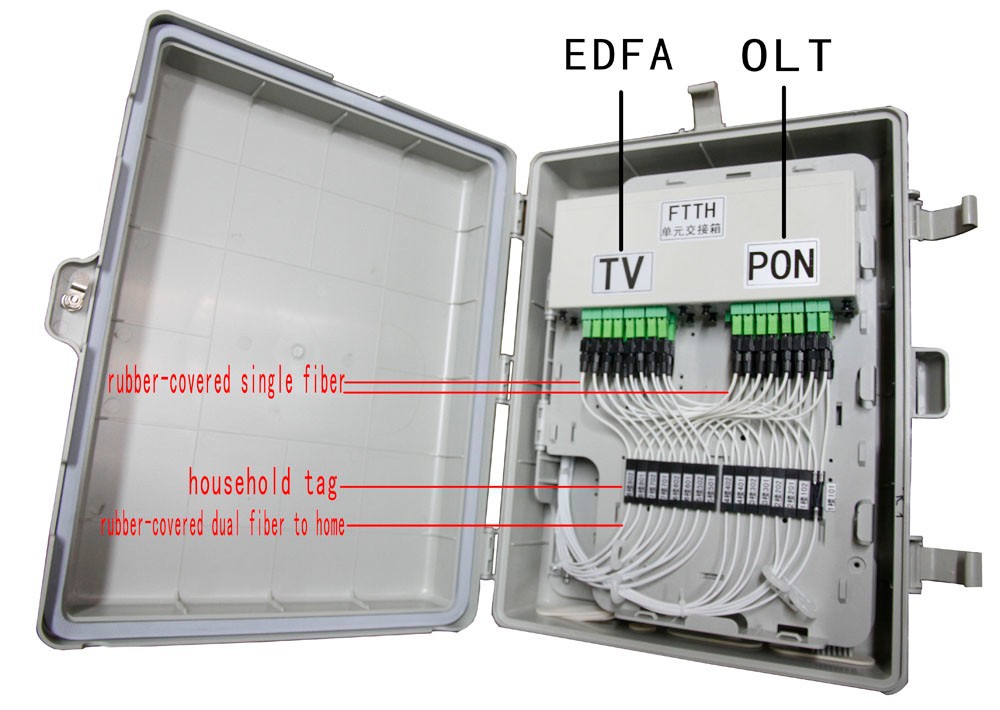

Application
1.Optical Distribution Frame
2.Computer Networks
3.Fiber Optic Communication Systems
4.Optical Access Networks
5.Local Area Network
6.Fiber Optic Sensors
7.Fiber Optic Data Communications
8.Fiber Optic Cable Television
9.Fiber Optic Test Equipment
10.Access wiring
11.Connecting Between Backbone Optical Cable and RX

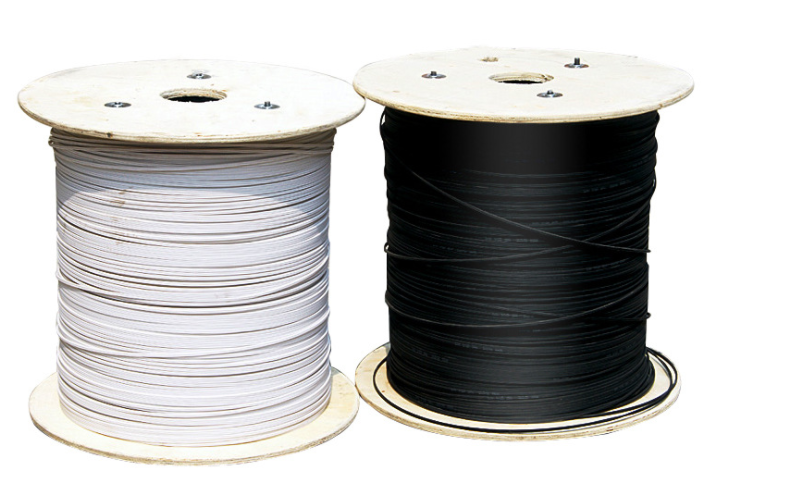

Product Show
