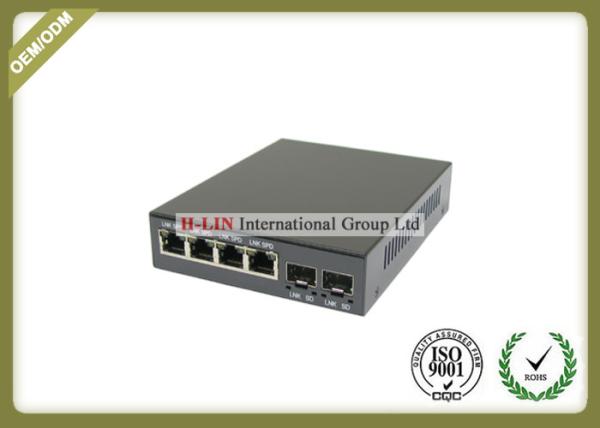

10/100/1000M 2 Fx Port + 4 RJ-45 Ports Fiber Optical Media
Converter
4 ports 10/100/1000M RJ45 port + 2 SFP Fiber Port Switch
This media converter has 4 10/100/1000M UTP ports and 2 SFP fiber
ports.
The product is possessed of stable performance, excellent quality
and reasonable price because of adopting latest IC and high quality
of transceivers. It is applicable to use in small patterns of
Optical Fiber Ethernet.
10/100/1000M adaptive fast Ethernet optical Media Converter is a
new product used for optical transmission via high-speed Ethernet.
It is capable of switching between twisted pair and optical and
relaying across 10/100 Base-TX/1000 Base-Fx and 1000Base-FX network
segments, meeting long-distance, high-speed and high-broadband fast
Ethernet workgroup users’ needs, achieving high-speed remote
interconnection for up to 100 km's relay-free computer data
network. With steady and reliable performance, design in accordance
with Ethernet standard and lightning protection, it is particularly
applicable to a wide range of fields requiring a variety of
broadband data network and high-reliability data transmission or
dedicated IP data transfer network, such as telecommunication,
cable television, railway, military, finance and securities,
customs, civil aviation, shipping, power, water conservancy and
oilfield etc, and is an ideal type of facility to build broadband
campus network, cable TV and intelligent broadband FTTB/FTTH
networks.
Features
- In accordance with Ethernet standards IEEE802.3,
- 10/100Base-TX/1000Base-TX and 1000Base-FX
- Supported Ports: LC for optical fiber; RJ45 for twisted pair
- Auto-adaptation rate and full/half-duplex mode supported at twisted
pair port
- Auto MDI/MDIX supported without need of cable selection
- Up to 13 LEDs for status indication of optical power port and UTP
port
- External and built-in DC power supplies provided
- Up to 1024 MAC addresses supported
- 512 kb data storage integrated, and 802.1X original MAC address
authentication supported
- Conflicting frames detection in half-duplex and flow control in
full duplex supported
Quality Assurance
Replacement within one year and non-charge repair within three
years guaranteed
Note:
All of our media converters can be made logo as customer's request.
Power supply can be EU,UK,American type for option.
Product Connection Diagram
