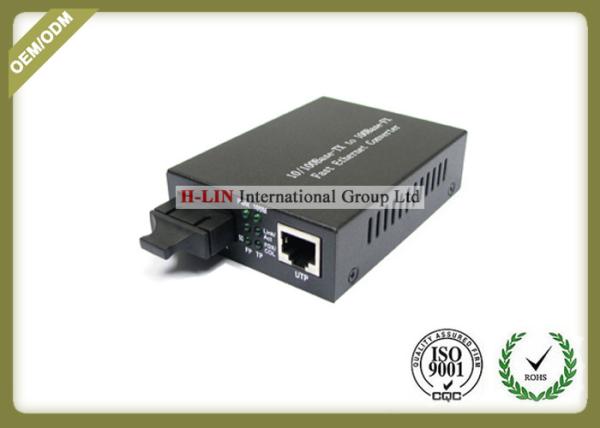

ROHS Compliant 1000M Fiber Optic Media Converter singlemode dual fiber with transmission 20~100km

Technical parameters:
1. Standard Protocol: IEEE 802.3z 1000Base-TX/FX standard
2.Connector:oneUTPRJ-45connector,oneSC/STconnector
3. Operation mode: full duplex mode or half duplex mode
4. Power supply parameter:
outside: 5V DC 2A
built-in: 110-265V AC 48VDC
5. Environmental temperature: 0��?60 ��?lt;br /> 6. Relative humidity: 5%-90%
8. TP cable: Cat5 UTP cable
9. Transfer fiber:
multi-mode: 50/125, 62.5/125 or 100/140μm
single mode:: 8.3/125, 8.7/125, 9/125 or 10/125μm

Description:

Optical Fiber Media Converter, it is a kind of ethernet transmission medium unit which change twisted elecctrical signal of short distance with optical signal of long distance.At the many places,it is also called fiber Converter.. The products are generally used in Ethernet cable can not cover, must use fiber to extend the transmission distance of the actual network environment, the application and the access layer is usually located in the broadband metropolitan area network; such as HD video transmission monitoring and safety engineering; at the same time to help the last mile fiber line connected to metropolitan area network and outer network also played a huge role.

Brief introduction

This product supports IEEE802.3z 1000Base-Tx/Fx protocol, as well as full duplex and half duplex mode.
This manual is for 1000M transceivers.

Installation
1. Interface
RJ-45 interface
The transmission media adopts CAT5 twisted-pair with typical length of 1000 meter.
It features the function of automatically identifying the through line and cross wire
Fiber interface
SC/ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX.
When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely "TX-RX", "RX-TX" (direct butting for single optical fiber).
2. Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair.
And the multi/single mode fiber is connected to SC/ST fiber interface of the optical transceiver. Then switch on.
The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)

Quality Assurance

Replacement within one year and non-charge repair within three years guaranteed
