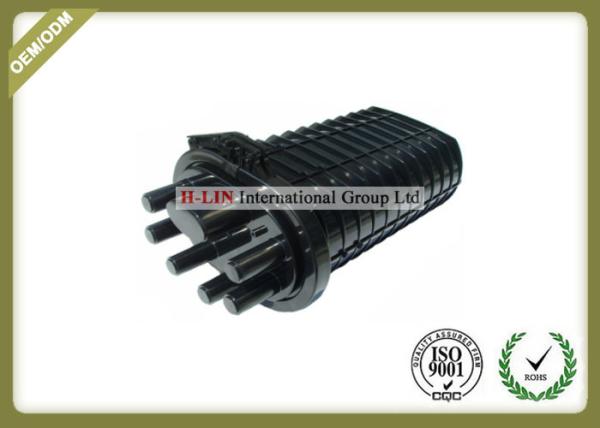

4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity
288 Cores
Description about Fiber Optic Closure:
Fiber Optic Closure, also called the cable connection box, is the
end of the local access cable, and then through the optical fiber
jumper access to optical switch, which prevent the nature of hot
and cold, light, oxygen and microbial materials caused by aging,
and has excellent mechanical strength.The shell of optical closure
and its body structure can bear the worst environmental change, at
the same time, flame retardant, waterproof, shock, impact, stretch
and twist protected cable.
This model Fiber Optical Closure, with innovative design,
manufacturing and material selection, excellent sealing technology,
to ensure the reliability and stability of the product. It can
provide reliable, solid and flexible protection for the direct,
terminal or divergent splicing of optical fiber.
Features:
Aging resistance: good stability for heat, heat radiation, air,
ozone and so on.
Corrosion resistance: strong resistance to dilute acids, salts,
oxidants, aliphatic hydrocarbons and so on.
Sealing technology: The use of reusable components to open seal to ensure good airtightness and
waterproof performance.
Mechanical properties: The use of high-strength engineering plastic shell ,and the external fasteners components are made of high quality
stainless steel,that able to withstand harsh conditions such as vibration, impact,
cable stretch distortion and strong temperature changes.
Locking device: Does not require special tools, easy to install and open the
duplicate.
Divergence function: 6 small 1 big inlet and outlet design
Connection function: using stacked flip type structure, it does not
need to disassemble other splice tray.
Splice Tray capacity: single core bundle, 12 cores per splice tray,
double core bundles, 24 cores per splice tray.
Maximum capacity fiber optic cable access: the largest diameter of
the port optical cable is 40cm
The maximum holds 12 splice trays.
Specifiaction:
| Product outlook size | Long:500mm Diameter:250 |
| Product material quality | PC(Polycarbonate) |
| Product weight | Approximately4kg |
| Suitable Dia of cable | 8-40mm |
| Fibers/Tray | 12 Or24 |
| Max capacity(F) | 288 in two layers |
| Outside box size | 58*52*51.5 |
| Each packing quantity | 4 pieces |

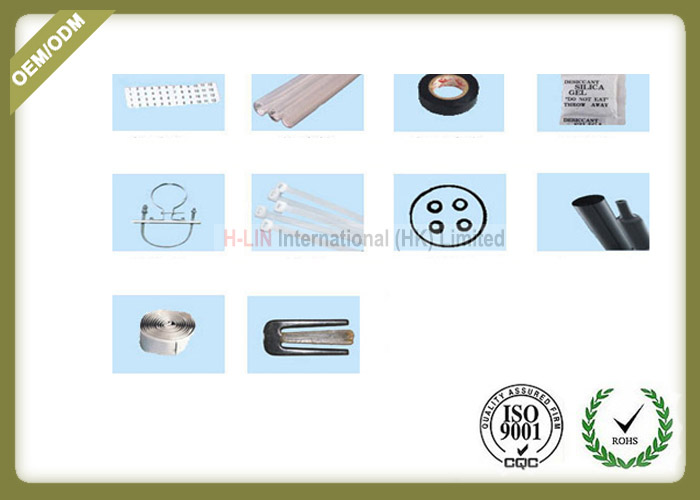

Components:
(1)a cover
(2), an optical fiber fusion disc
(3), a pressing clamp
(4), a silicone rubber
(5) for sealing, an overhead hanger
(6), and other parts.
Shipping
- If the quantity of order is not very big ,we could send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS
- If order is big,we will use air shipment or sea shipment.
