    Waterproof 5U 96 Ports Fiber Optic Distribution Box For Telecommunication / Network

    Ask Lasest Price
    Brand Name : H-Lin
    Model Number : HL-FODF-5U96SC
    Certification : CE/FCC/ROHS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 pieces/week
    Delivery Time : 1week after payment
    • Product Details
    • Company Profile

    Waterproof 5U 96 Ports Fiber Optic Distribution Box For Telecommunication / Network

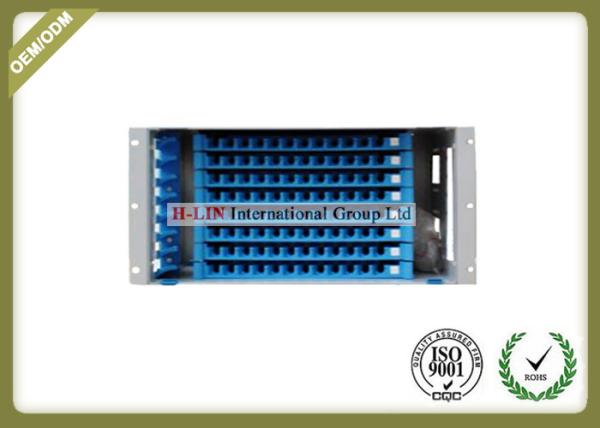

    Rack mount Fixed type Optical Distribution Frame 5U 96cores


    Rack-mount fiber optic distribution frame is made of cold-rolled steel, modular design, with splice tray units inside and could be pre-installed with various kinds of fiber optic adapters and pigtails.


    The proper design controls the bend radius of the cable inside the enclosure to avoid extra optical loss.

    Features:


    1. Modular design with splicing and distribution function


    2. 12 cores distribution and splicing unit has the function of storage for maximum 2m pigtail


    3. Splice tray units inside changeable


    4. Various panel plates to fit different adapter interface


    5. Can be fit for the pigtail or ribbon fan-out pigtail, suitable for 19'' or 23'' standard ODF


    6. Standard size, light weight and reasonable structure


    7. The mark in the front panel is for the easy identification, easy operation


    Application:

    • Telecommunications subscriber loop

    • Fiber to the home (FTTH)

    • LAN/WAN

    • CATV
    Specification:
    ModelCore CountHeightDimension(mm)Weight(kg)
    HL-FODF-7U1441447U490x305x311.517.1
    HL-FODF-5U96965U490x305x222.511
    HL-FODF-4U72724U490x305x1789
    HL-FODF-3U48483U490x305x133.57
    HL-FODF-2U36362U490x305x895.7
    HL-FODF-2U24242U490x305x894.6

    Packaging & Shipping:
