Cat6A FTP PVC 0.57mm CCA Conductor Network Cable
Description:
Generic cabling products are used for modular and flexible
transmission of information between buildings or groups of
buildings. It can realize the connection of voice, data, exchange
and all kinds of control equipments and communication network
system. It includes network, telephone, monitoring, power supply
and lighting system, etc.
On the market there are a lot of the cable, module inferior copper
or alloy production, plastic parts made by the mould is not
accurate and waste plastics into such products, which lead to the
construction side can not pass test after laying.
Cat6 Cable is a kind of network cable,which are often used for
connection in Switch,router to computer.The transmission frequency
is expend to 250MHz or higher.Compared cat5e,there is a difference
in the appearance and structure,it does not only add the insulated
cross,make the 4pairs wire into the groove of corss,and the
diameter of cable is more thick.
Indoor wiring, digital communications horizontal twisted pair
cables, used in building integrated wiring system in the work area
of communication between the frame out wiring end and the
transition between the user and the communication of residential
cabling system leads to the wiring wiring between aircraft. The
center cross PE frame is adopted to separate the 4 individual pairs
of wires, and the electrical transmission performance is reliable
and excellent, and the bandwidth and SNR margin are enhanced. For
communication over 250MHz channel broadband, the maximum
transmission rate is 1000Mbps.

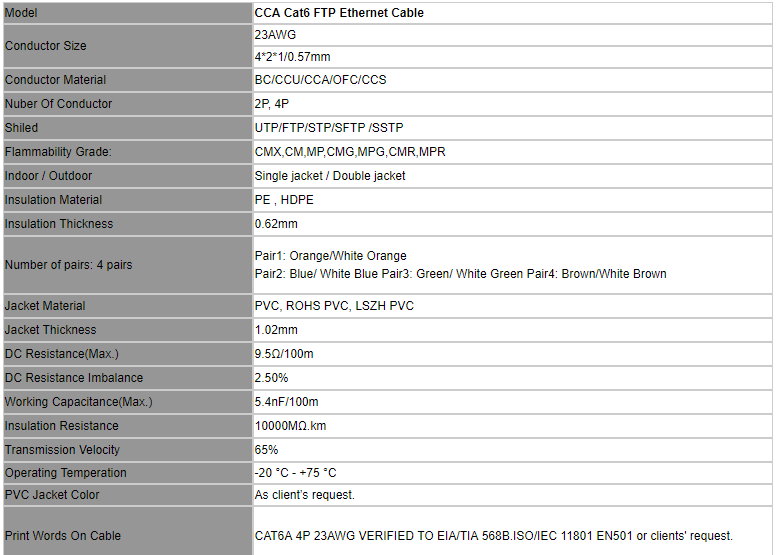

Parameter:
Standard:
ANST/TTA/ETL-568-B,YD/T1019-2001
Packing:
