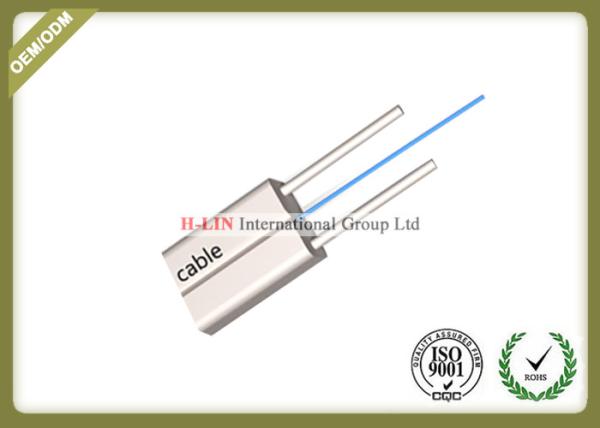

Indoor 1~4 core fiber optic drop cable with messenger steel wire or
FRP strength member
Description
The optical fiber unit is positioned in the centre. Two parallel
Fiber Reinforced Plastics (FRP) are placed at the two sides.then
the cable is completed with white LSZH sheath
Characteristics
1 · Small bending radius, flexible performance can meet the
requirement of FTTH
2· Adopt the fiber core excellent than ITU G.657 standard
3 Groove design of 8 type, easy to rip, install and maintain
3· Strength member at both side use as metal or FRP,outer jacket is
PVC or LSZH
4· Small diameter, light weight and high practicability;
5: Fiber cores can be 1~12core,as client's request
Product Description
FTTH (Fiber to The Home) is a kind of transmission cable used to
connect directly to a home user or a business user. With no limits
to its bandwidth, wavelength and transmission technology and being
suitable for the application of various new services, FTTH cable is
the best solution for the connection between the internet backbone
to the user’s desktop.
Purchasing Risk
Many domestic small factories modified electric-wires equipment to
produce FTTH cable. They used unqualified fibers which is with very
cheap price 3USD/KM to imitate G657 bend-resistant fiber, waste
electric-wires and rubber slippers smashed as pvc raw material for
the LSZH outer sheath. Those inferior cables will cause many
problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack of the cable
jacket in several months, etc.
Application:
No weak current space, no extra space, non suspended ceiling area,
from wire distribution cabinet to floor termination box,FTTH ,
reconstruction of old buildings
Cable construction details
Packing:
Production:
Certification:
