Description:
Shrinkable sleeve is applied to the optic fiber closure to fix and
protect the optic fiber When splicing. The sleeve can be divided
into two types (single and mass) according To the function. The
single type is used for the single-fiber, and the mass type is used
For the ribbon fiber. It is different in the reinforcement between
two types. The single One realizes the reinforcement by the
stainless steel needles, the later one via the Ceramic
reinforcement member to realize the function. Mass means there are
several Cores for the fiber. So the mass sleeve includes 4cores,
6cores, 8cores, 12cores (for types).
Mass type sleeve materials (Ribbon)
*** Hot melt adhesive
*** Ceramic reinforcement member
*** Heat shrinkable tube
Single type sleeve materials (Bunchy)
*** Hot melt adhesive
*** Heat shrinkable polyolefin
*** Stainless steel needle
Protection Sleeve is composed by polyene pyrocondensation tube,
fusion tube and steel rod. And it is a kind of professional
protection component for splicing optical fiber.
Product features:
The component consist cross-linked polyolefin, hot-melt pipe and
reinforced stainless steel wire.
1. does not affect the optical conductivity of the optical fiber.
2. protect the connecting point and improve the mechanical
strength.
3. the operation is simple, reducing the danger of damage to
optical fiber during installation.
4. transparent tube makes the optical fiber connection state clear
at a glance.
5. the sealing structure has good resistance to temperature and
humidity.
| Series 1: single core protection sleeve |
| Specifications | tube length | Hot melt pipe | steel Needle | package |
| Size after contraction(mm) | length(mm) | inner dia(mm) | length(mm) | DIA(mm) | length(mm) |
| 1.5*60mm | 2.9-3.08 | 60±2 | ≥1.1 | 60±2 | 1.5±0.05 | 55±1 | 100pcs/bag |
| 1.5*50mm | 2.9-3.08 | 50±2 | ≥1.1 | 50±2 | 1.5±0.05 | 45±1 | 100pcs/bag |
| 1.5*45mm | 2.9-3.08 | 45±2 | ≥1.1 | 45±2 | 1.5±0.05 | 40±1 | 100pcs/bag |
| 1.5*40mm | 2.9-3.08 | 40±2 | ≥1.1 | 40±2 | 1.5±0.05 | 35±1 | 100pcs/bag |
| 1.5*25mm | 2.9-3.08 | 25±2 | ≥1.1 | 25±2 | 1.5±0.05 | 21±1 | 100pcs/bag |
| 1.2*60mm | 2.6-2.77 | 60±2 | ≥1.1 | 60±2 | 1.2±0.05 | 55±1 | 100pcs/bag |
| 1.2*45mm | 2.6-2.77 | 45±2 | ≥1.1 | 45±2 | 1.2±0.05 | 40±1 | 100pcs/bag |
| 1.2*40mm | 2.6-2.77 | 40±2 | ≥1.1 | 40±2 | 1.2±0.05 | 35±1 | 100pcs/bag |
| 1.2*30mm | 2.6-2.77 | 30±2 | ≥1.1 | 30±2 | 1.2±0.05 | 26±1 | 100pcs/bag |
| 1.2*25mm | 2.6-2.77 | 25±2 | ≥1.1 | 25±2 | 1.2±0.05 | 21±1 | 100pcs/bag |
| 1.0*60mm | 2.2-2.37 | 60±2 | ≥1.1 | 60±2 | 1.0±0.05 | 55±1 | 100pcs/bag |
| 1.0*45mm | 2.2-2.37 | 45±2 | ≥1.1 | 45±2 | 1.0±0.05 | 40±1 | 100pcs/bag |

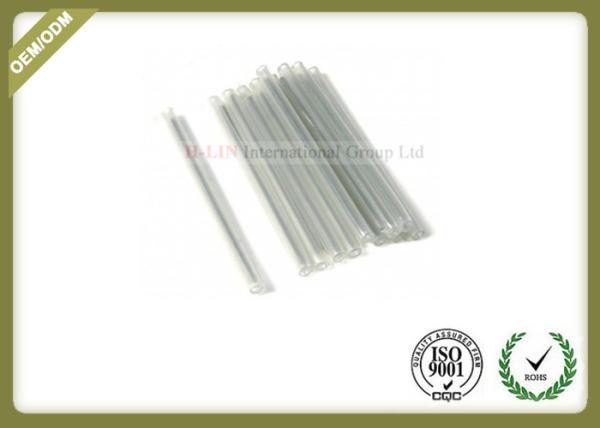

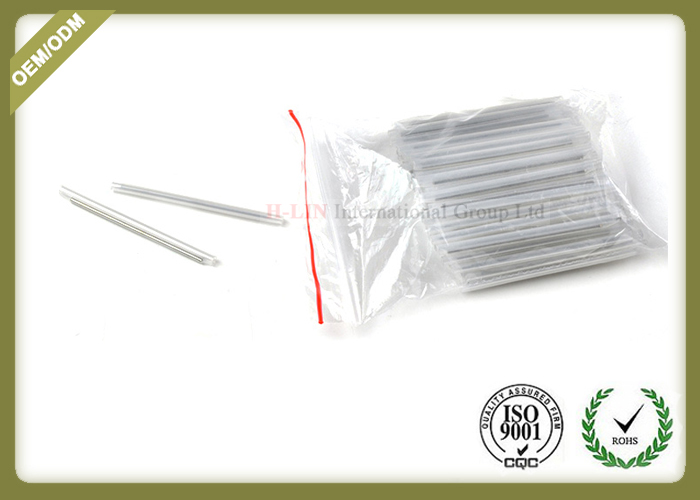

Picture:
