Brand Name : | H-LIN |
Model Number : | 1*32 |
Certification : | CE/ROHS/IOS9001 |
Price : | negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 50000 Piece/Pieces per Month |
Delivery Time : | 3~5 working days after payment |
Good quality of 1*32 optical fiber Splitter/ PLC splitter/ Fiber optic splitter for optical communication
Features
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability
Applications
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. H-LIN provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Typical Usage
1. FTTX Systems
2. FTTH Systems
3. PON Networks
4. CATV Links
5. Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

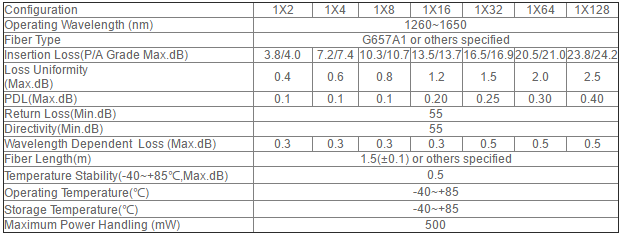

1* N PLC Splitter
![]() |
