Duplex OM3 LC to LC multimode fiber optic patch cable
Optical fiber jumper / pigtail is the largest and most basic
component in optical fiber communication system. There are many
kinds of hopping wires composed of different connector types and
different types of optical cables. They are widely used in optical
communication networks such as FTTx, MAN, WAN, CATV network, and
active equipment debugging and testing.H-LIN has set up a jumper
processing base since 2005. In addition to providing various types
of connectors and corresponding adapters, it can also process
different types of optical cables into jumpers, single-core,
double-core, multi-core, bundle or strip, with strict curing time
and temperature control and strict testing standards. On the basis
of accurate and rigorous quality inspection methods, nearly 17
years of professional experience, more than 300 enterprises at home
and abroad to provide high-quality and low-cost jumper products,
products meet Telcordia-GR-326, IEC standards and RoHS
requirements. Transfer jumper can be FC-LC, FC-SC, FC-ST, FC-MU,
FC-DIN, single-core jumper or double-core jumper, single-mode
jumper or multi-mode jumper, etc., at the customer's option.
Features:
High quality core inserts
Low insertion loss and high return loss.
Good interchangeability and durability
There are many kinds of jumpers for choice.
Products can be customized according to customer requirements.
Comply with Telcordia GR-326-CORE
Length can be customized.
Applications:
LAN wiring between different buildings of an enterprise
Optical link interconnection in optical active devices
Wiring in communication base, wiring in distribution box.
Light signal connection in residential area, industrial area room
and commercial building
Production and testing of optical devices
Optical fiber communication system, cable television network,
telecommunication network.
Metropolitan area network, Wan, FTTx
Specifiaction:
| Fiber type | Cable type | Connector color | Boot diameter | Boot color | Polising | Length |
| SM: 9/125μm | SX | Beige | 0.9mm | Beige | UPC | as request |
| MM: 50/125μm | DX | blue | 2.0mm | blue | APC |
| MM: 62.5/125μm | 4C | Green | 3.0mm | Green | |
| MM: OM3/150 | 6C | | | aqua | |
| MM: OM3/300 | 8C | | | white | |
| MM: OM3/550 | 12C | | | black | |
| 24C | | | red |
|
Product detailes:
1:

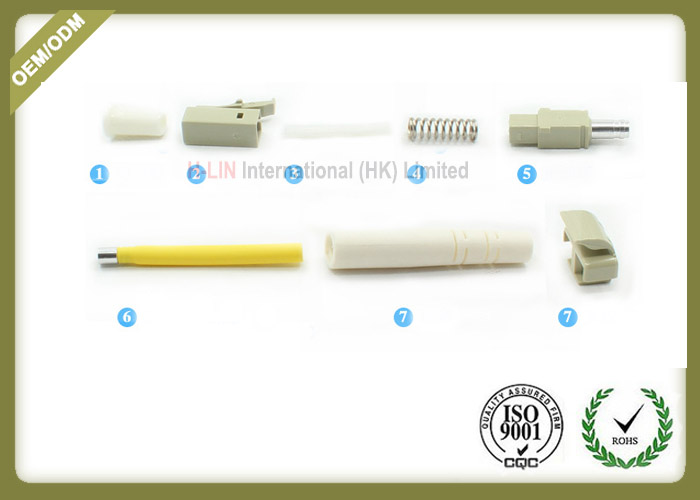

The raw materials of H-LIN LC jumper are in line with ROHS, new
materials, and eliminate the processing of recycled materials. The
H-LIN parts are displayed according to the correct assembly
sequence of the LC jumpe
2:

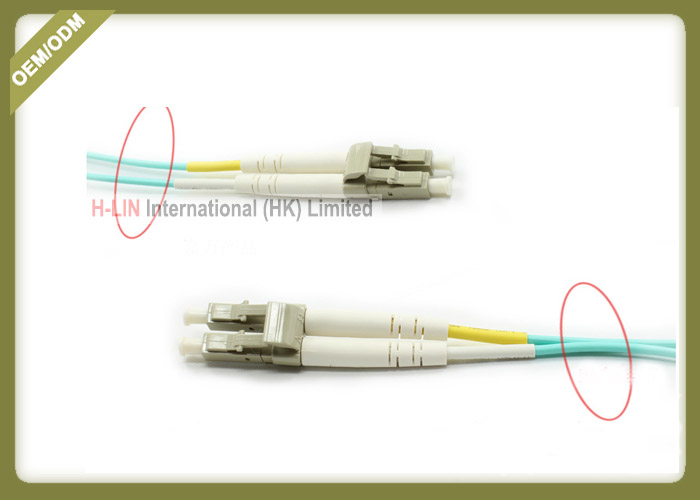

H-LIN products after splint fixation is very neat, the length of
optical cable is basically the same, the error is small. Other
manufacturers after splint fixation, the length of optical cable is
different, the error is large.
3
Core insertion end face position is very clean, test end face
clean, no impurities, some other manufacturers coring end face
impurities, test end face has large and small concave and convex
defects,
is a bad product
